US Motors

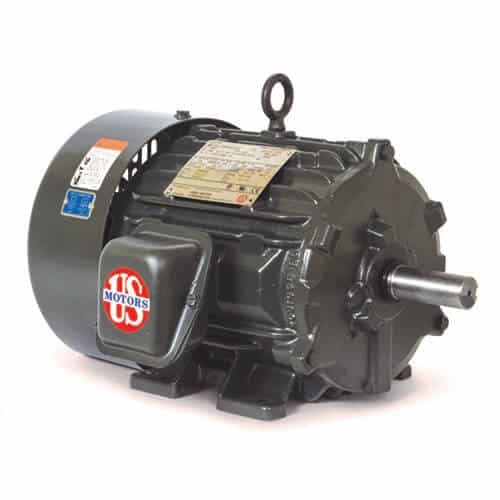

75HP 3PH 365T 1800 TEFC 208-230/460V
Mfr # HD75P2E | Wright’s # USM HD75P2E
75HP General Purpose Motor, 3 Phase, 365T Frame, 4 Poles, 1785 RPM, TEFC Enclosure, 208-230/460V
Contact Us For Pricing
Product Information
Brand
US Motors
Mfr #
HD75P2E
Wright's #
USM HD75P2E
Country of Origin
MEX
Specifications
C Dim
32.3"
Electrical Type
Polyphase
Enclosure
TEFC
Frame
365T
Frequency
60/50 Hz
HP
75 HP
HP2
75 HP
Insulation Class
F
kW
55.93kW
Max Ambient
40°C
Mounting Type
HORZ-FOOTED
Number of Poles
4
Number of Speeds
1
Overload Protection
None
Phase
3
Rated Current
189-170/85
Rated Voltage
208-230/460V
RPM
1785
Service Factor
1.15
