US Motors

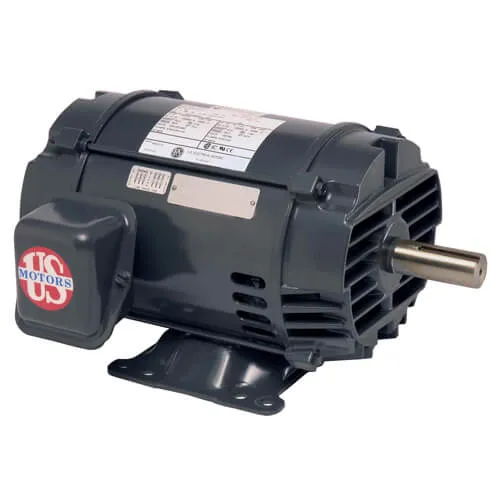

75HP 3PH 365TS 1800 ODP 230/460V

Mfr # D75P2ES | Wright’s # USM D75P2ES

75HP General Purpose Motor, 3 Phase, 365TS Frame, 4 Poles, 1780 RPM, ODP Enclosure, 230/460V

$4,714.47

Product Information

Brand US Motors
Mfr # D75P2ES
Wright's # USM D75P2ES
Country of Origin MEX

Specifications

C Dim 27.6"
Electrical Type Polyphase
Enclosure ODP
Frame 365TS
Frequency 60/50 Hz
HP 75 HP
HP2 75 HP
Insulation Class F
kW 55.93kW
Max Ambient 40°C
Mounting Type HORZ-FOOTED
Number of Poles 4
Number of Speeds 1
Overload Protection None
Phase 3
Rated Current 175/87
Rated Voltage 230/460V
RPM 1780
Service Factor 1.15
