US Motors
75HP 3PH 365T 1800 ODP 230/460V
Mfr # D75P2E | Wright’s # USM D75P2E

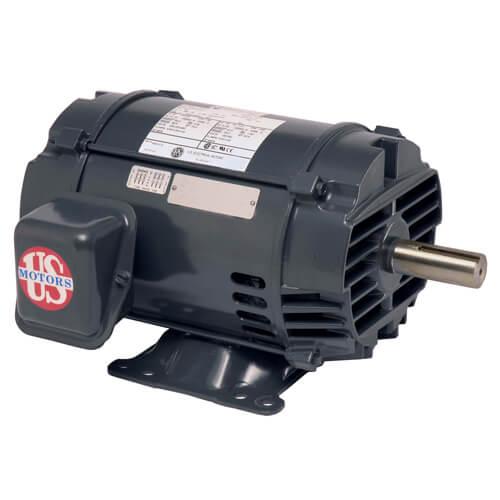

75HP General Purpose Motor, 3 Phase, 365T Frame, 4 Poles, 1780 RPM, ODP Enclosure, 230/460V
Contact Us For Pricing
Product Information
Brand
US Motors
Mfr #
D75P2E
Wright's #
USM D75P2E
Country of Origin
MEX
Specifications
C Dim
29.7"
Electrical Type
Polyphase
Enclosure
ODP
Frame
365T
Frequency
60Hz & 50Hz
HP
75 HP
HP2
75 HP
Insulation Class
F
kW
55.93kW
Max Ambient
40°C
Mounting Type
HORZ-FOOTED
Number of Poles
4
Number of Speeds
1
Overload Protection
None
Phase
3
Rated Current
175/87
Rated Voltage
230/460V
RPM
1780
Service Factor
1.15
