US Motors
10HP 3PH 215T 1800 TEFC 230/460V SG CT
Mfr # CW10V2E2 | Wright’s # USM CW10V2E2

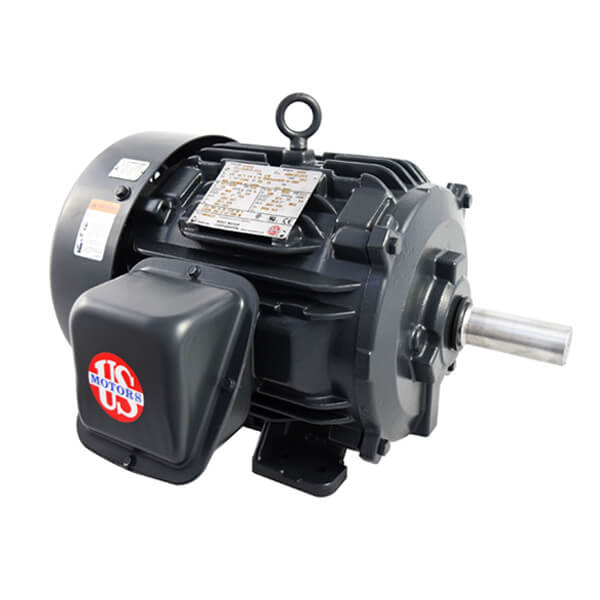

10HP Cooling Tower Motor, 3 Phase, 215T Frame, 4 Poles, 1770 RPM, TEFC Enclosure, 230/460V
Contact Us For Pricing
Product Information
Brand
US Motors
Mfr #
CW10V2E2
Wright's #
USM CW10V2E2
Country of Origin
MEX
Specifications
C Dim
19.6"
Electrical Type
Polyphase
Enclosure
TEFC
Frame
215T
Frequency
60/50 Hz
HP
10 HP
HP2
10 HP
Insulation Class
F
kW
7.46kW
Max Ambient
40°C
Mounting Type
HORZ-FOOTED
Number of Poles
4
Number of Speeds
1
Overload Protection
None
Phase
3
Rated Current
25.7/12.8
Rated Voltage
230/460V
RPM
1770
Service Factor
1.15
