US Motors

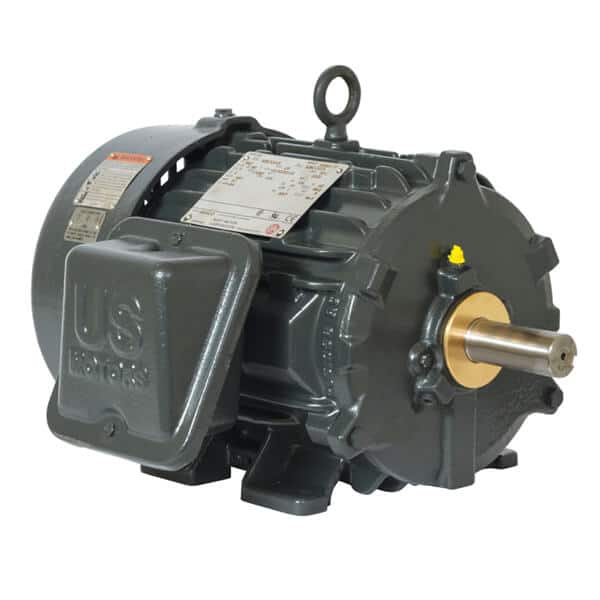

60HP 3PH 364TS 3600 TEFC 460V
Mfr # 8P60P1CS | Wright’s # USM 8P60P1CS
60HP General Purpose Motor, 3 Phase, 364TS Frame, 2 Poles, 3565 RPM, TEFC Enclosure, 460V
Contact Us For Pricing
Product Information
Brand
US Motors
Mfr #
8P60P1CS
Wright's #
USM 8P60P1CS
Country of Origin
MEX
Specifications
C Dim
30.9"
Electrical Type
Polyphase
Enclosure
TEFC
Frame
364TS
Frequency
60 Hz
HP
60 HP
HP2
60 HP
Insulation Class
F
kW
44.74kW
Max Ambient
40°C
Mounting Type
HORZ-FOOTED
Number of Poles
2
Number of Speeds
1
Overload Protection
None
Phase
3
Rated Current
68
Rated Voltage
460V
RPM
3565
Service Factor
1.15
