US Motors

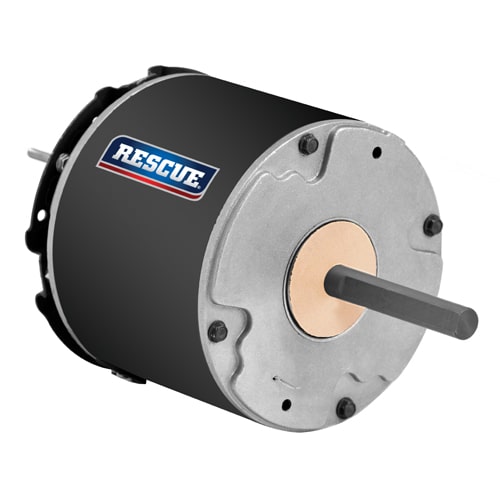

1/8HP PSC 5″ 1075 TE 208-230V 5uF CF
Mfr # 5440H | Wright’s # USM 5440H
1/8HP Condenser Fan Motor, PSC, 42Y Frame, 1075 RPM, TE Enclosure, 208-230V, 5uF Capacitance
Contact Us For Pricing
Product Information
Brand
US Motors
Mfr #
5440H
Wright's #
USM 5440H
Country of Origin
MEX
Specifications
C Dim
8"
Electrical Type
PSC
Enclosure
TE
Frame
42Y
Frequency
60 Hz
HP
0.13 HP
HP2
1/8 HP
Insulation Class
B
kW
0.09kW
Material
Rolled Steel
Max Ambient
70°C
Mounting Type
Belly Band
Number of Speeds
1
Overload Protection
Automatic Reset
Phase
1
Rated Current
.8
Rated Voltage
208-230V
RPM
1075
Service Factor
1
