US Motors

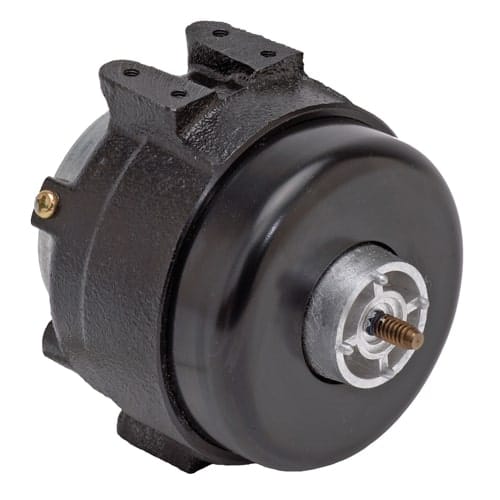

9W ShP Unit Bearing 1500 CCWLE TEAO 230V
Mfr # 2109 | Wright’s # USM 2109
9W Unit Bearing Fan Motor, ShP, Unit Bearing Frame, 1550 RPM, TEAO Enclosure, 230V
$67.73
Product Information
Brand US Motors
Mfr # 2109
Wright's # USM 2109
Country of Origin MEX
Specifications
C Dim 4.3"
Electrical Type Shaded Pole
Enclosure TEAO
Frame Unit Bearing
Frequency 60/50 Hz
Insulation Class A
Material Cast Iron
Max Ambient 40°C
Mounting Type ALL ANGLE
Number of Speeds 1
Overload Protection Impedance Protected
Phase 1
Rated Current 0.3
Rated Voltage 230V
Rotation CCWLE
RPM 1550
Service Factor 1
Watt 9
