Teco-Westinghouse

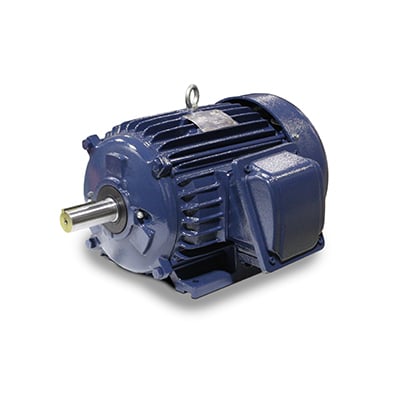

40HP 3PH 365T 1200 ODP 230/460/796V CI OWP
Mfr # Q0406 | Wright’s # TEC Q0406
40HP Oil Well Pump Motor, 3 Phase, 365T Frame, 1200 RPM, ODP Enclosure, 230/460/796V
Contact Us For Pricing
Product Information
Brand
Teco-Westinghouse
Mfr #
Q0406
Wright's #
TEC Q0406
Specifications
Efficiency
Standard Efficiency
Enclosure
ODP
Full Load Efficiency
89.5
Frame
365T
Frequency
60 Hz
HP
40 HP
HP2
40 HP
Insulation Class
F
kW
29.83kW
Material
Cast Iron
Max Ambient
40°C
Number of Poles
6
Phase
3
Rated Current
46.5A
Rated Voltage
230/460/796V
RPM
1200
Service Factor
1.15
