Marathon

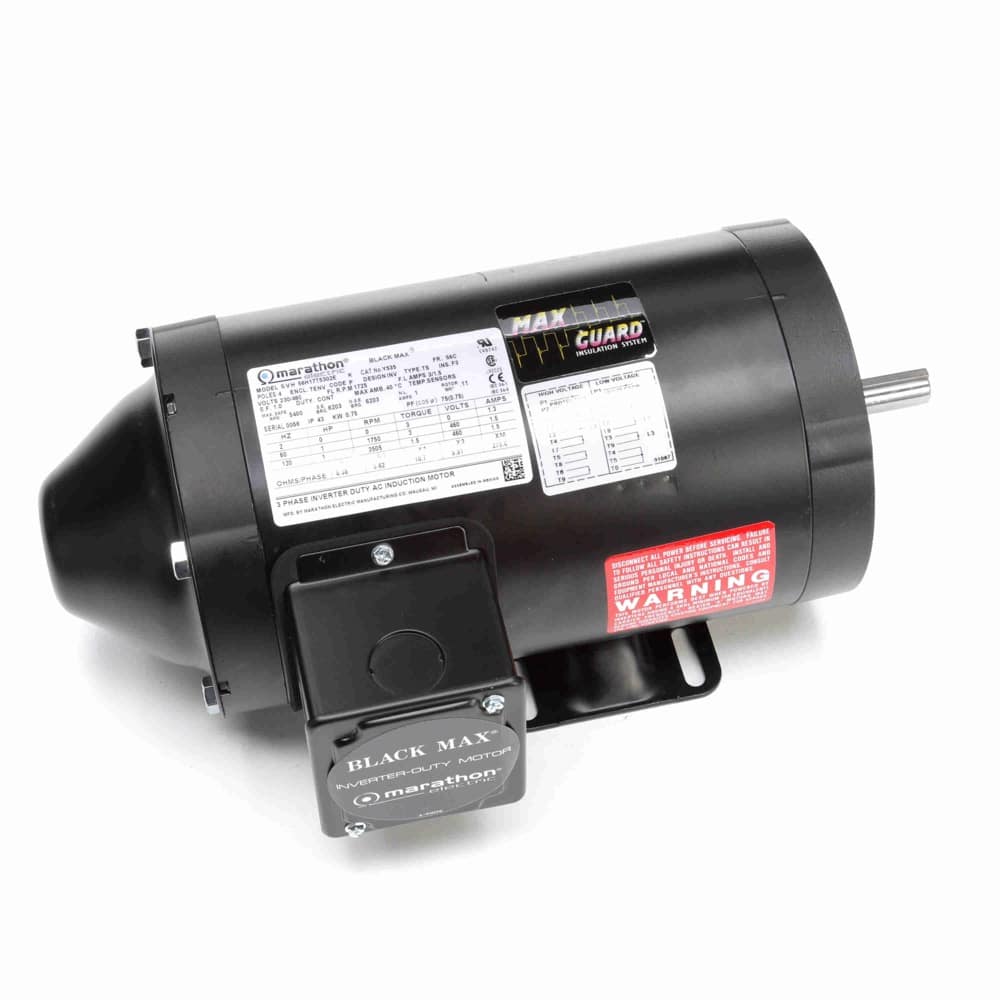

1HP 3PH 56C 4P TENV 1800 230/460V TS WB INV
Mfr # Y535 | Wright’s # MAR Y535
Contact Us For Pricing
Product Information
Brand
Marathon
Sub-Brand
Black Max® Inverter Duty
Mfr #
Y535
Wright's #
MAR Y535
Country of Origin
MEX
Specifications
C Dim
14.98"
Electrical Type
Squirrel Cage Inverter Duty
Enclosure
ODP
Full Load Efficiency
84
Frame
56C
Frequency
60 Hz
HP
1 HP
HP2
1 HP
Insulation Class
F
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Bolt-on Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Thermostat
Phase
3
Rated Current
3.0/1.5
Rated Voltage
230/460
Rotation
Reversible
RPM
1725
Service Factor
1
Shaft Diameter
0.625"
Speed
1725
Starting Method
