Marathon

1HP PSC 48Y TENV 1075 460V NB CF

Name: 1HP PSC 48Y TENV 1075 460V NB CF
Brand: Marathon
SKU: 32658
Price: 293.32 USD
Availability: OutOfStock

Mfr # X462 | Wright’s # MAR X462

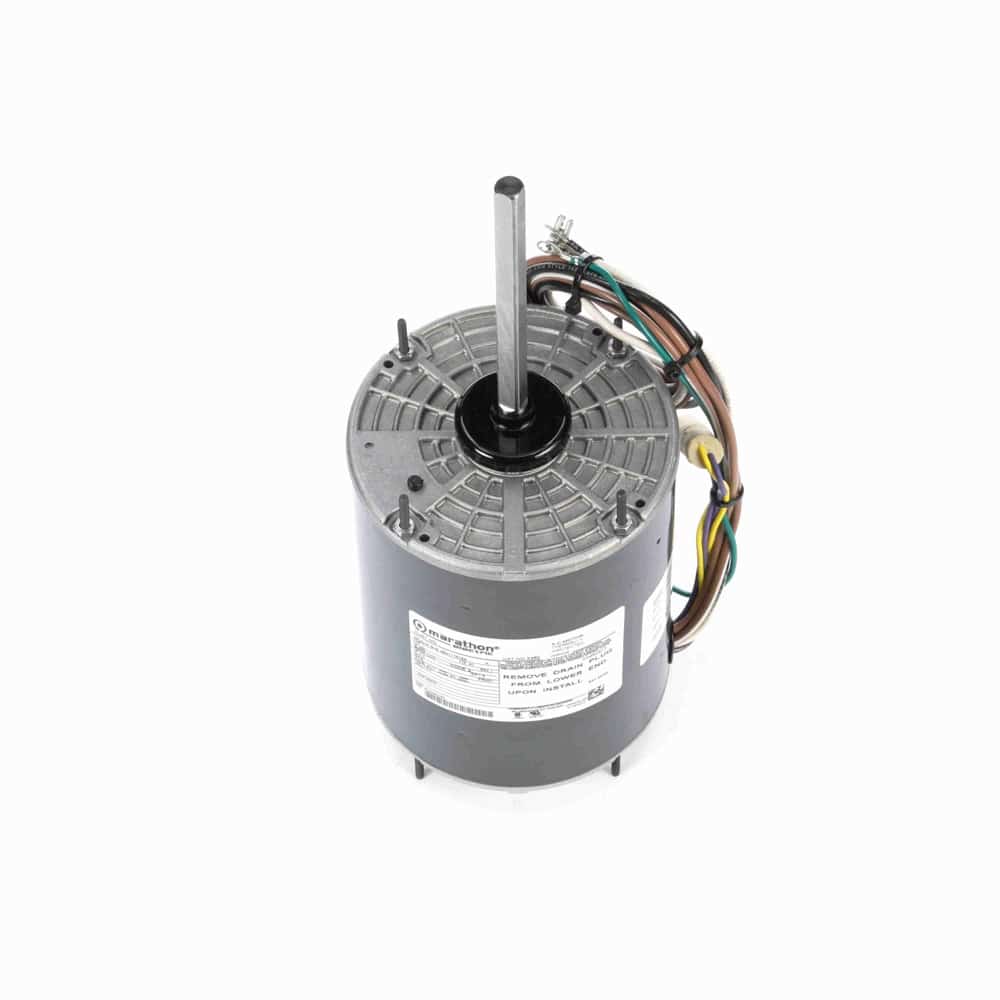

1HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 460V, ODP Enclosure, AOL Overload Protection

Product Information

Brand Marathon

Mfr # X462

Wright's # MAR X462

Country of Origin MEX

Specifications

C Dim 13.75"

Electrical Type Permanent Split Capacitor

Enclosure ODP

Full Load Efficiency 68

Frame 48Y

Frequency 60 Hz

HP 1 HP

HP2 1 HP

Insulation Class B

kW 0.75kW

Material Rolled Steel

Max Ambient 60°C

Mounting Type Round

Number of Poles 6

Number of Speeds 1

Overload Protection Automatic

Phase 1

Rated Current 3.4

Rated Voltage 460

Rotation Selective Counterclockwise

RPM 1075

Service Factor 1

Shaft Diameter 0.5"

Speed 1075

Starting Method

Description

Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.

1HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 460V, Totally Enclosed Non Ventilated Enclosure, AOL Overload Protection

Documents

Data Sheet

1HP PSC 48Y TENV 1075 460V NB CF
