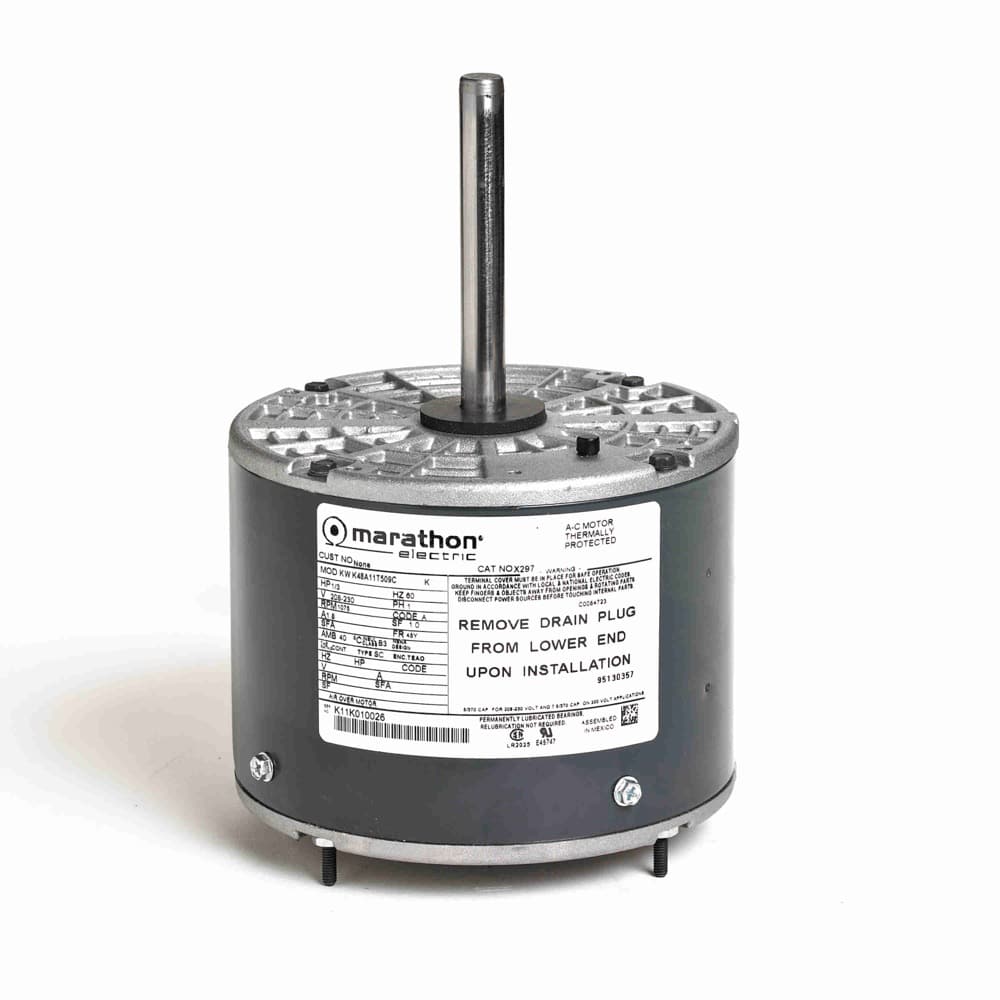

1/6HP PSC 48Y OAO 1075 208-230V NB CF
Marathon

1/6HP PSC 48Y OAO 1075 208-230V NB CF

Mfr # X440 | Wright’s # MAR X440

1/6HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure, AOL Overload Protection

Contact Us For Pricing

Product Information

Brand Marathon
Mfr # X440
Wright's # MAR X440
Country of Origin MEX

Specifications

C Dim 10.5"
Electrical Type Permanent Split Capacitor
Enclosure ODP
Full Load Efficiency 60
Frame 48Y
Frequency 60 Hz
HP 0.17 HP
HP2 1/6 HP
Insulation Class B
kW 0.13kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Round - Extended Studs
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 0.97-0.90
Rated Voltage 208-230
Rotation Selective Counterclockwise
RPM 1075
Service Factor 1
Shaft Diameter 0.5"
Speed 1075
Starting Method

Description

Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.

1/6HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, Open Air Over Enclosure, AOL Overload Protection
