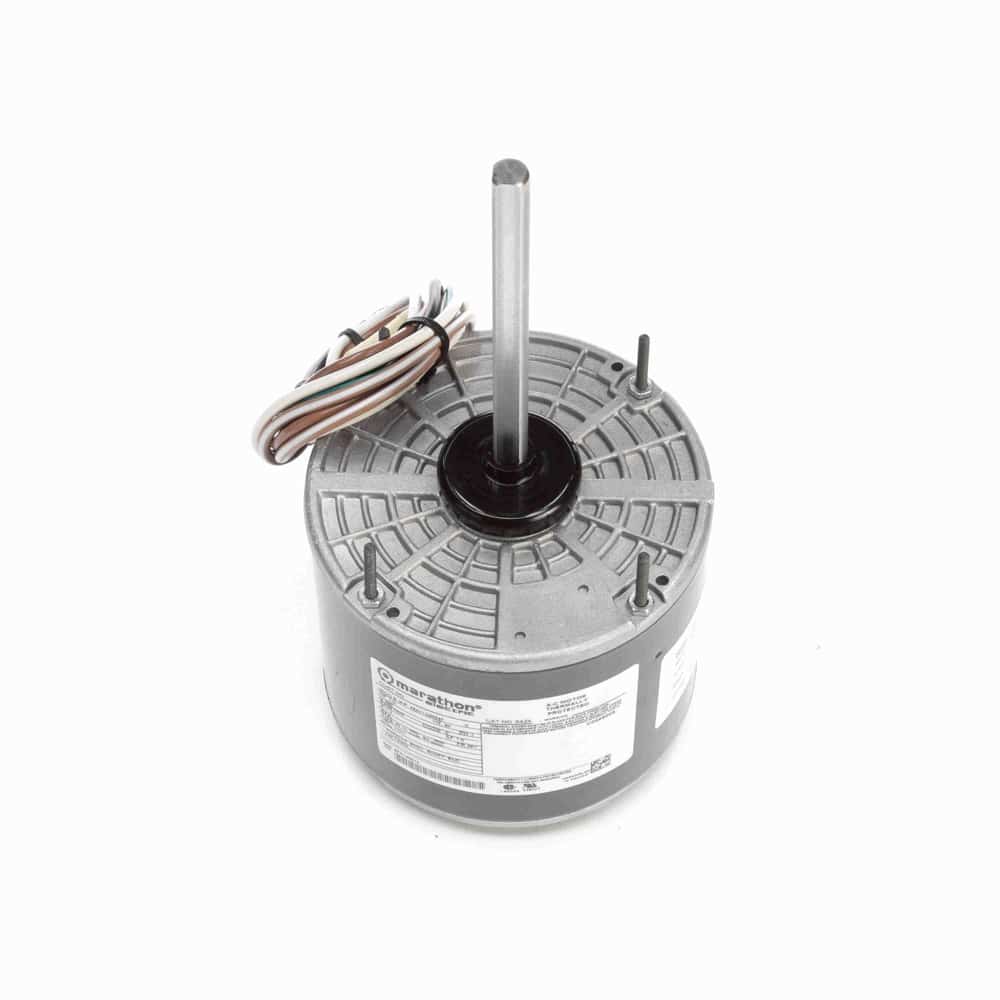

1/3HP PSC 48Y OAO 1075 460V NB CF
Marathon

1/3HP PSC 48Y OAO 1075 460V NB CF

Mfr # X424 | Wright’s # MAR X424

1/3HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 460V, ODP Enclosure, AOL Overload Protection

10 in stock

Sign in to access special pricing and availability.
x

$68.24

Product Information

Brand Marathon
Mfr # X424
Wright's # MAR X424
Country of Origin MEX

Specifications

C Dim 11.69"
Electrical Type Permanent Split Capacitor
Enclosure ODP
Full Load Efficiency 67
Frame 48Y
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Round - Extended Studs
Number of Poles 6
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 1.4
Rated Voltage 460
Rotation Selective Counterclockwise
RPM 1075
Service Factor 1
Shaft Diameter 0.5"
Speed 1075
Starting Method

Description

Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.

1/3HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 460V, Open Air Over Enclosure, AOL Overload Protection
