Marathon
1/5HP PSC 48Z 6P OAO 1075 230V AOL CF
Mfr # X223 | Wright’s # MAR X223

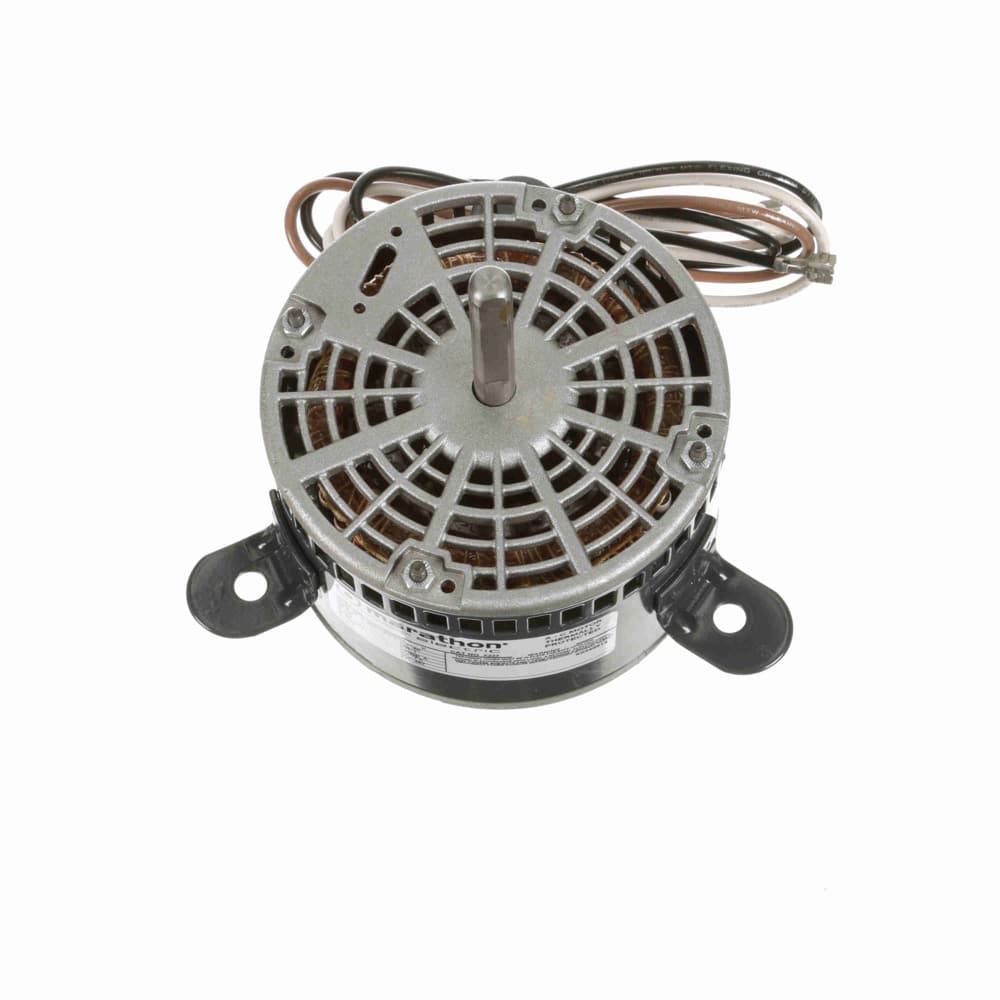

1/5HP Condenser Fan Motor, 1 Phase, 48Z Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 230V, ODP Enclosure, AOL Overload Protection
$58.08
Product Information
Brand
Marathon
Mfr #
X223
Wright's #
MAR X223
Country of Origin
MEX
Specifications
C Dim
6.62"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Full Load Efficiency
52.5
Frame
48Z
Frequency
60 Hz
HP
0.2 HP
HP2
1/5 HP
Insulation Class
B
kW
0.15kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Three Lug Mount
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1.1
Rated Voltage
230
Rotation
Fixed Counterclockwise
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
Single speed model
Replaces Carrier No. HC37VE230 & Fasco No. D842
Capacitor not included.
3 lug mounting
1/5HP Condenser Fan Motor, 1 Phase, 48Z Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 230V, Open Air Over Enclosure, AOL Overload Protection
