Marathon

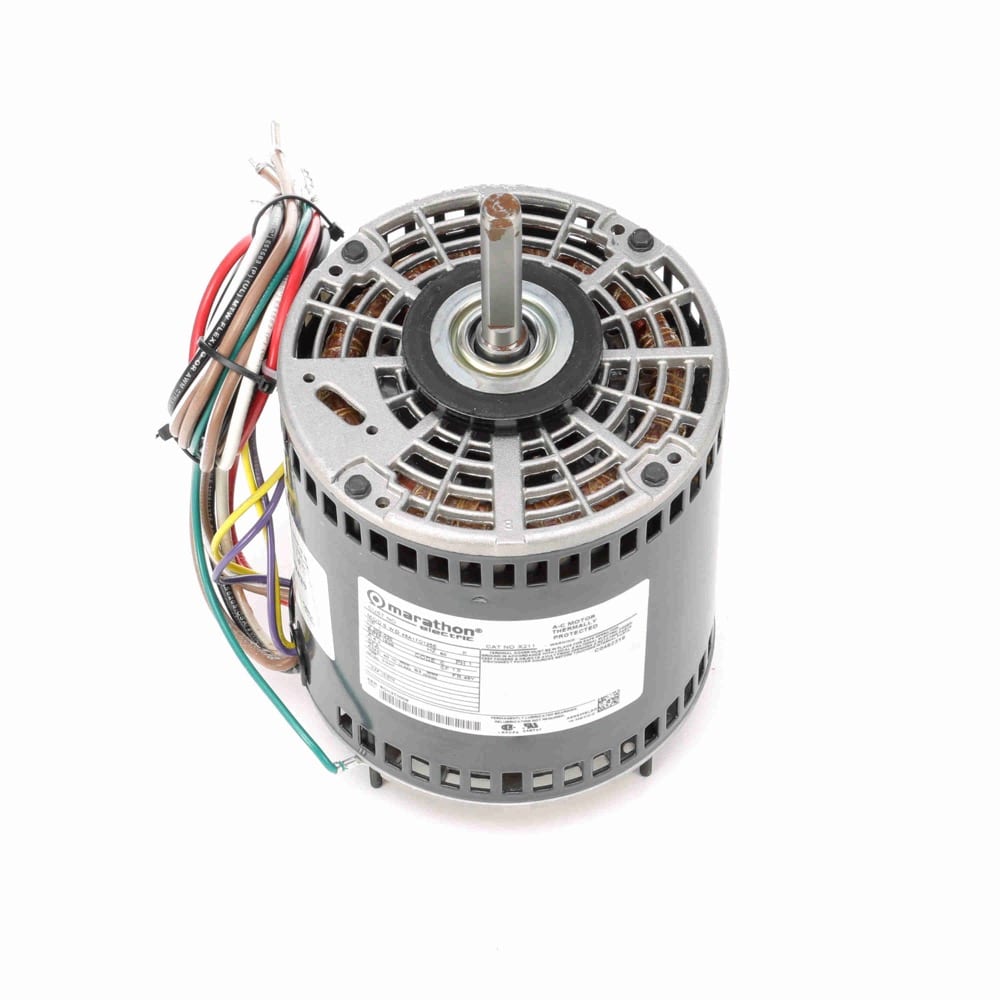

1HP PSC 48Y 2spd 1625 208-230V NB BM
Mfr # X211 | Wright’s # MAR X211
1HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1625 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, ODP Enclosure, AOL Overload Protection
Contact Us For Pricing
Product Information
Brand
Marathon
Mfr #
X211
Wright's #
MAR X211
Country of Origin
MEX
Specifications
C Dim
9.75"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Full Load Efficiency
64
Frame
48Y
Frequency
60 Hz
HP
1 HP
HP2
1 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round Belly Band
Number of Poles
4
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
6.2
Rated Voltage
208-230
Rotation
Reversible
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Speed
1625
Starting Method
Description
Automatic reset thermal(as noted) protector prevents overheating.
Shielded ball bearings extend the service life of the motor.
Class B insulation protects motor for a maximum temperature rating.
Suitable for indoor or outdoor applications(as noted).
1HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1625 RPM, 2 Speed, Permanent Split Capacitor, 208-230V, Open Enclosed Enclosure, AOL Overload Protection
