Marathon

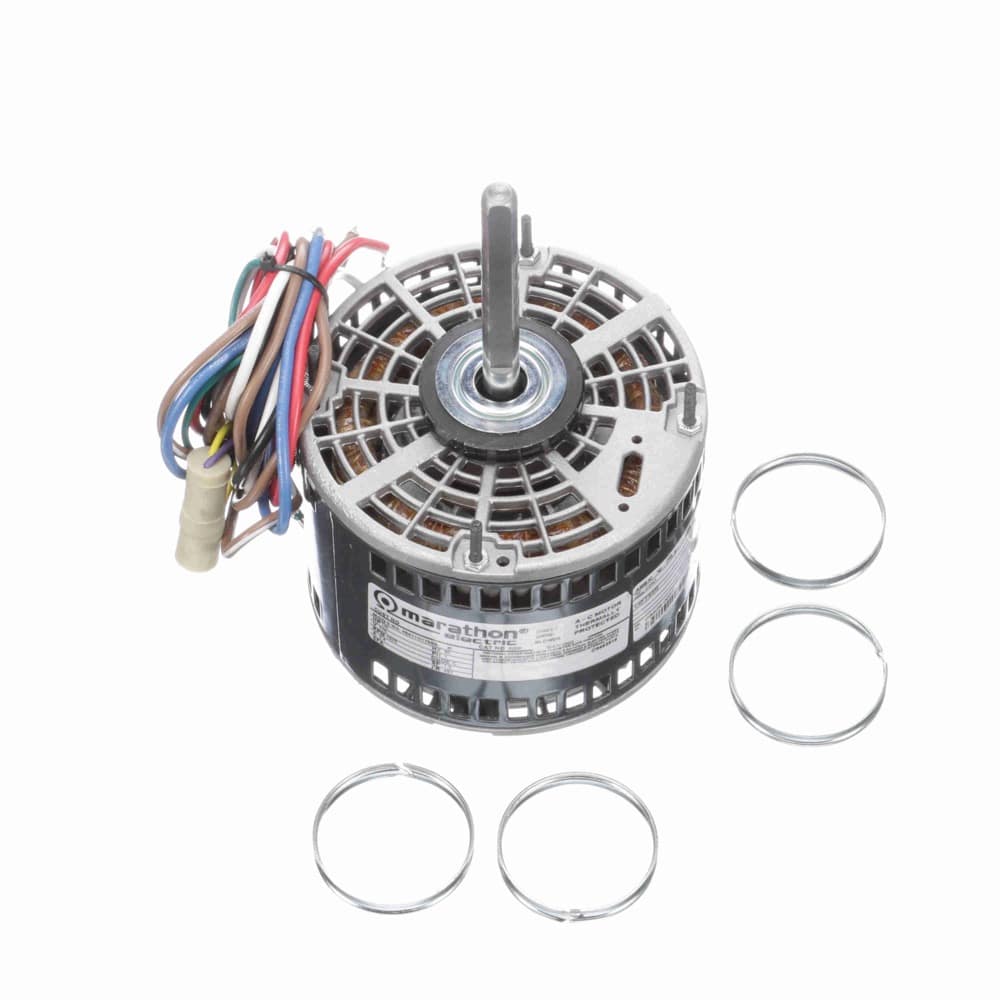

1/4HP PSC 48Y OAO 3spd 1075 115V BM
Mfr # X000 | Wright’s # MAR X000
1/4HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 115V, ODP Enclosure, AOL Overload Protection
Contact Us For Pricing
Product Information
Brand
Marathon
Mfr #
X000
Wright's #
MAR X000
Country of Origin
MEX
Specifications
C Dim
9.25"
Electrical Type
Permanent Split Capacitor
Enclosure
ODP
Full Load Efficiency
55
Frame
48Y
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Ring - Extended Studs
Number of Poles
6
Number of Speeds
3
Overload Protection
Automatic
Phase
1
Rated Current
3.4
Rated Voltage
115
Rotation
Selective Counterclockwise
RPM
1075
Service Factor
1
Shaft Diameter
0.5"
Speed
1075
Starting Method
Description
Automatic reset thermal(as noted) protector prevents overheating.
Shielded ball bearings extend the service life of the motor.
Class B insulation protects motor for a maximum temperature rating.
Suitable for indoor or outdoor applications(as noted).
1/4HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1075 RPM, 3 Speed, Permanent Split Capacitor, 115V, Open Air Over Enclosure, AOL Overload Protection
