Marathon

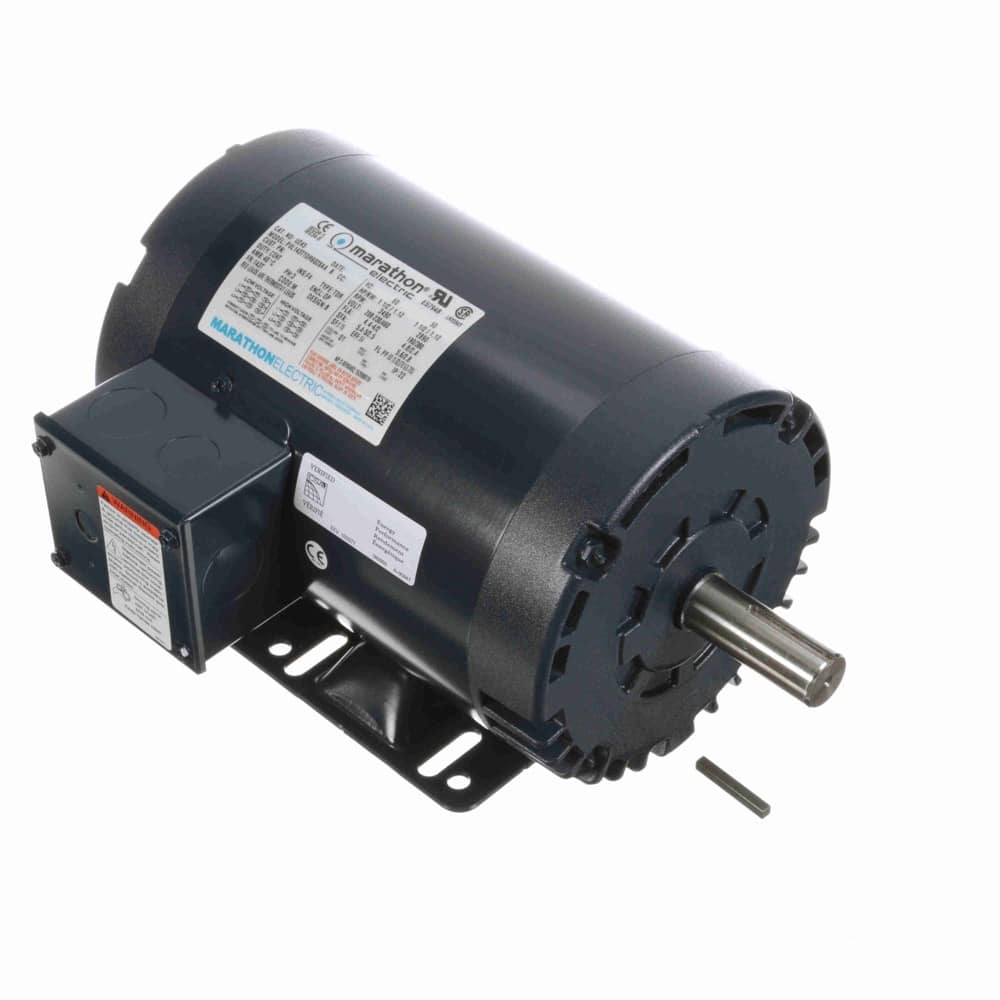

1.5HP 3PH 143T 2P ODP 3490 230/460V TS WB
Mfr # U245 | Wright’s # MAR U245
$200.51
Product Information
Brand
Marathon
Sub-Brand
XRI® General Purpose
Mfr #
U245
Wright's #
MAR U245
Country of Origin
USA
Specifications
C Dim
12.19"
Electrical Type
Squirrel Cage Induction Run
Enclosure
ODP
Full Load Efficiency
84
Frame
143T
Frequency
60 Hz
HP
1.5 HP
HP2
1-1/2 HP
Insulation Class
F
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
2
Number of Speeds
1
Overload Protection
Thermostat
Phase
3
Rated Current
4/2 & 4.8/2.4
Rated Voltage
230/460
Rotation
Reversible
RPM
3490
Service Factor
1.15
Shaft Diameter
0.875"
Speed
3490 & 2890
Starting Method
