Marathon

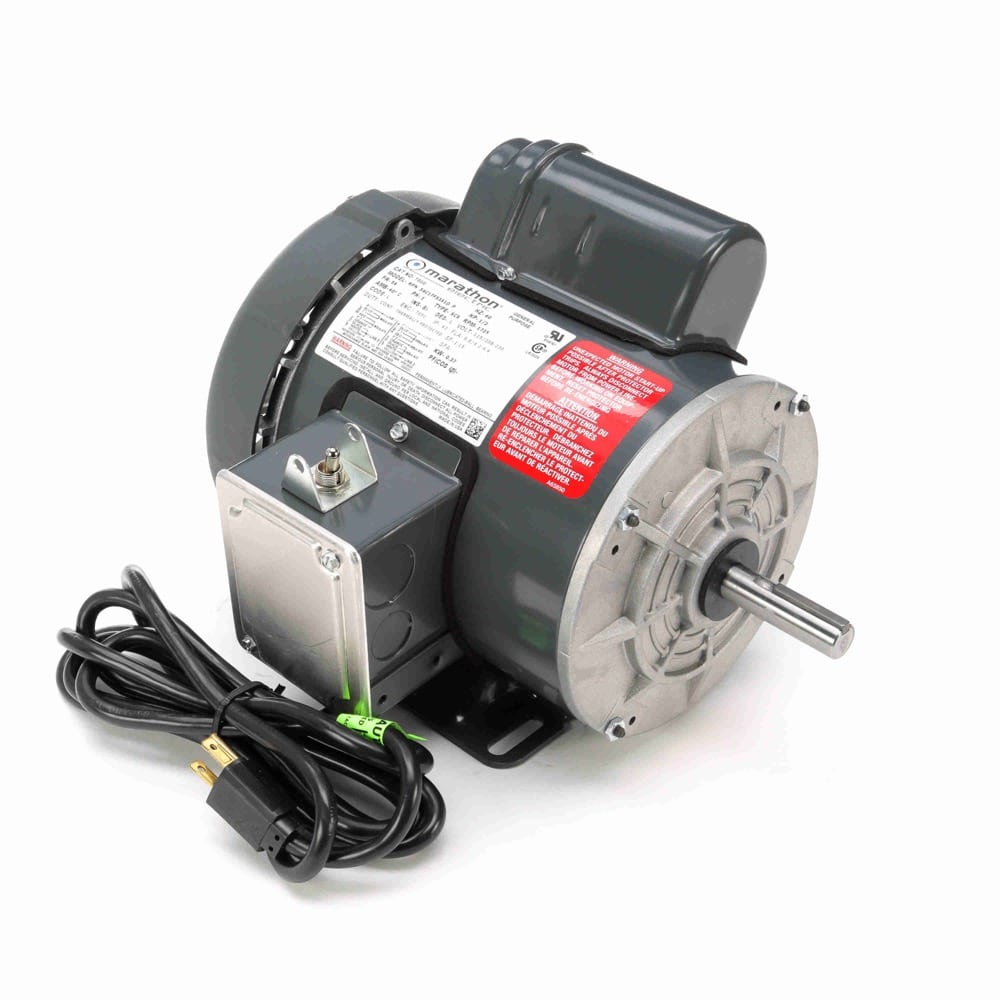

1/2HP 1PH 56 4P TEFC 1800 115/208-230V MOL WB

Mfr # T010 | Wright’s # MAR T010

$145.69

Product Information

Brand Marathon
Mfr # T010
Wright's # MAR T010
Country of Origin MEX

Specifications

C Dim 11.82"
Electrical Type Capacitor Start Induction Run
Enclosure ODP
Full Load Efficiency 66
Frame 56
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection Manual
Phase 1
Rated Current 8.8/4.2-4.4
Rated Voltage 115/208-230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625"
Speed 1725
Starting Method
