Marathon

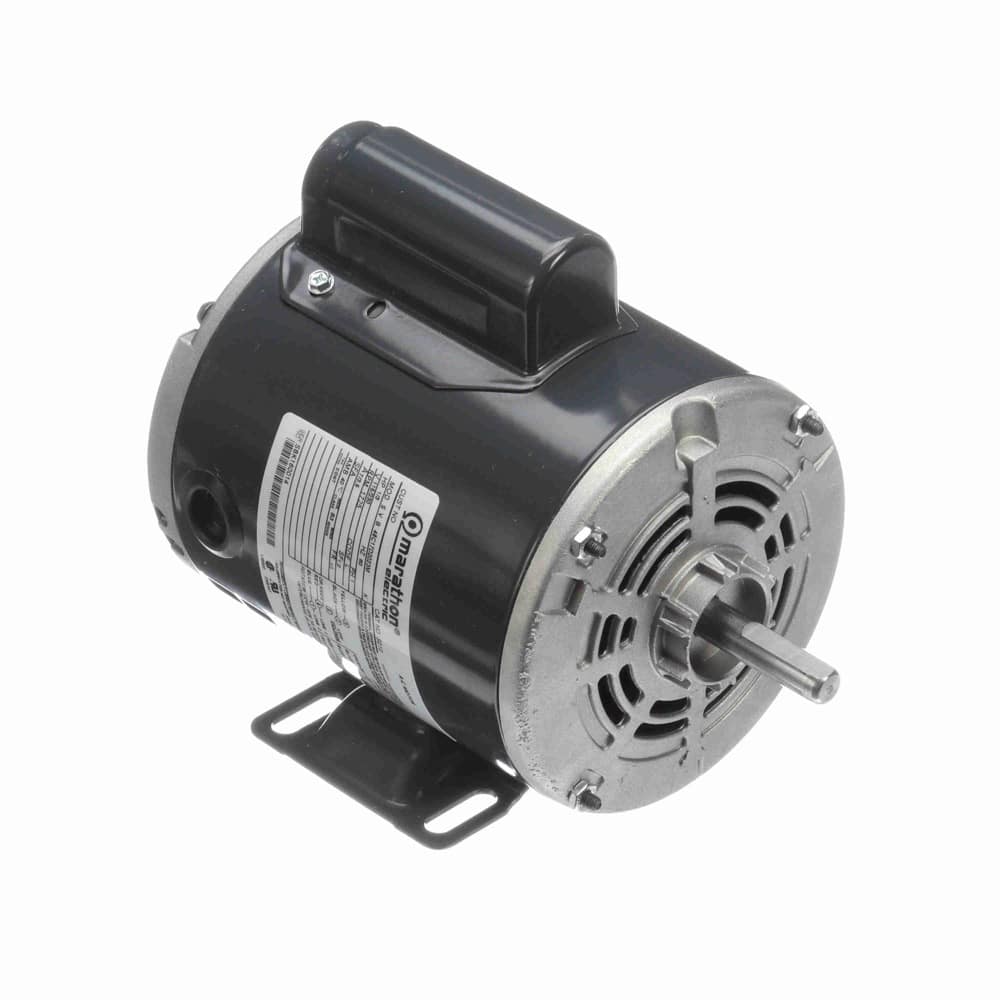

1/3HP 1PH 48 4P ODP 1725 115/230V WB
Mfr # S010 | Wright’s # MAR S010
1/3HP General Purpose Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Marathon
Mfr #
S010
Wright's #
MAR S010
Country of Origin
MEX
Specifications
C Dim
9.34"
Electrical Type
Capacitor Start Induction Run
Enclosure
ODP
Full Load Efficiency
59.5
Frame
48
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
7.0/3.5
Rated Voltage
115/230
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1
Shaft Diameter
0.5"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
1/3HP General Purpose Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, Drip Proof Enclosure
