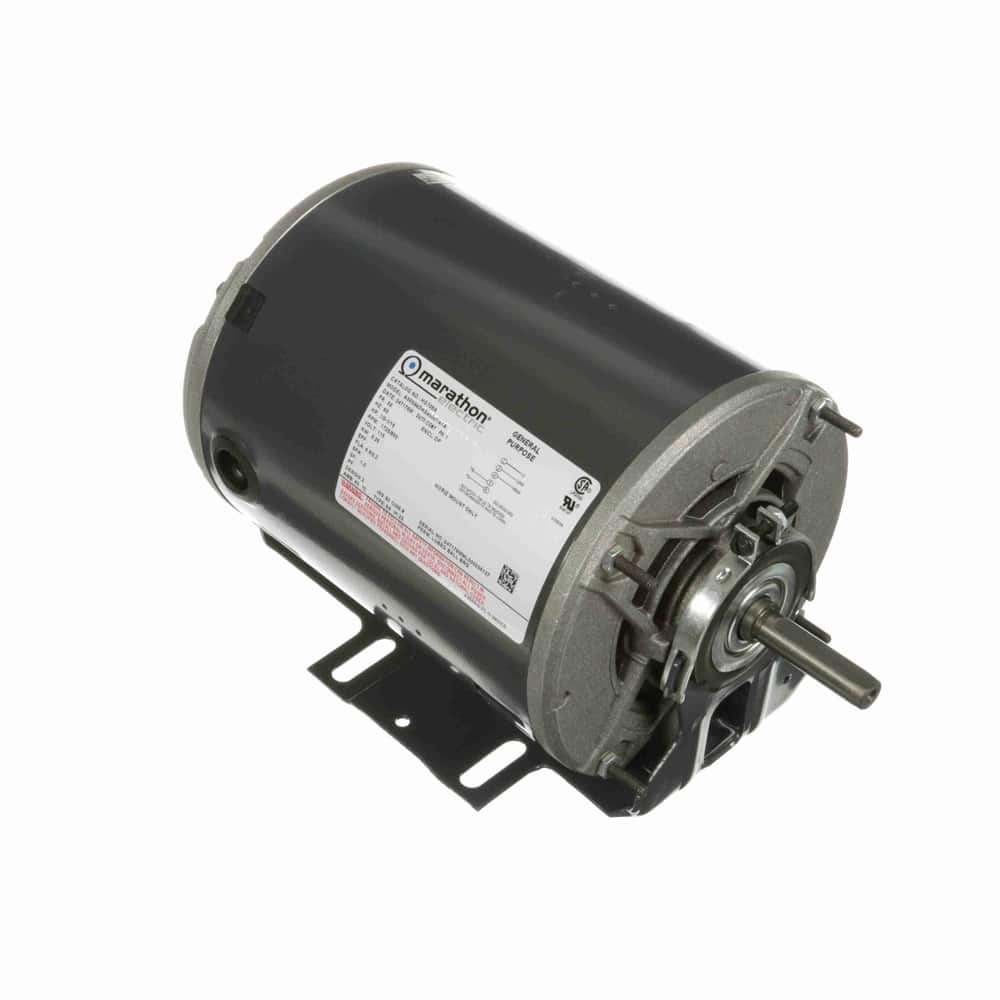

1/3HP SpP 56Z ODP 2spd 1725 115V BM
Marathon

1/3HP SpP 56Z ODP 2spd 1725 115V BM

Mfr # HG705A | Wright’s # MAR HG705A

1/3HP Fan & Blower Motor, 1 Phase, 56Z Frame, 1725 & 850 RPM, 2 Speed, Split Phase, 115V, ODP Enclosure, AOL Overload Protection

Contact Us For Pricing

Product Information

Brand Marathon
Mfr # HG705A
Wright's # MAR HG705A
Country of Origin MEX

Specifications

C Dim 11.54"
Electrical Type Split Phase
Enclosure ODP
Full Load Efficiency 68.5
Frame 56Z
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Resilient Base
Number of Poles 4/8
Number of Speeds 2
Overload Protection Automatic
Phase 1
Rated Current 4.6 & 2.2
Rated Voltage 115
Rotation Selective Clockwise
RPM 1725
Service Factor 1
Shaft Diameter 0.625"
Speed 1725 & 850
Starting Method

Description

Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.

1/3 & 1/15HP Fan & Blower Motor, 1 Phase, 56Z Frame, 1725 & 850 RPM, 2 Speed, Split Phase, 115V, Drip Proof Enclosure, AOL Overload Protection
