Marathon
1/6HP SpP 48 4P XPNV 1725 115V AOL WB
Mfr # HG456 | Wright’s # MAR HG456

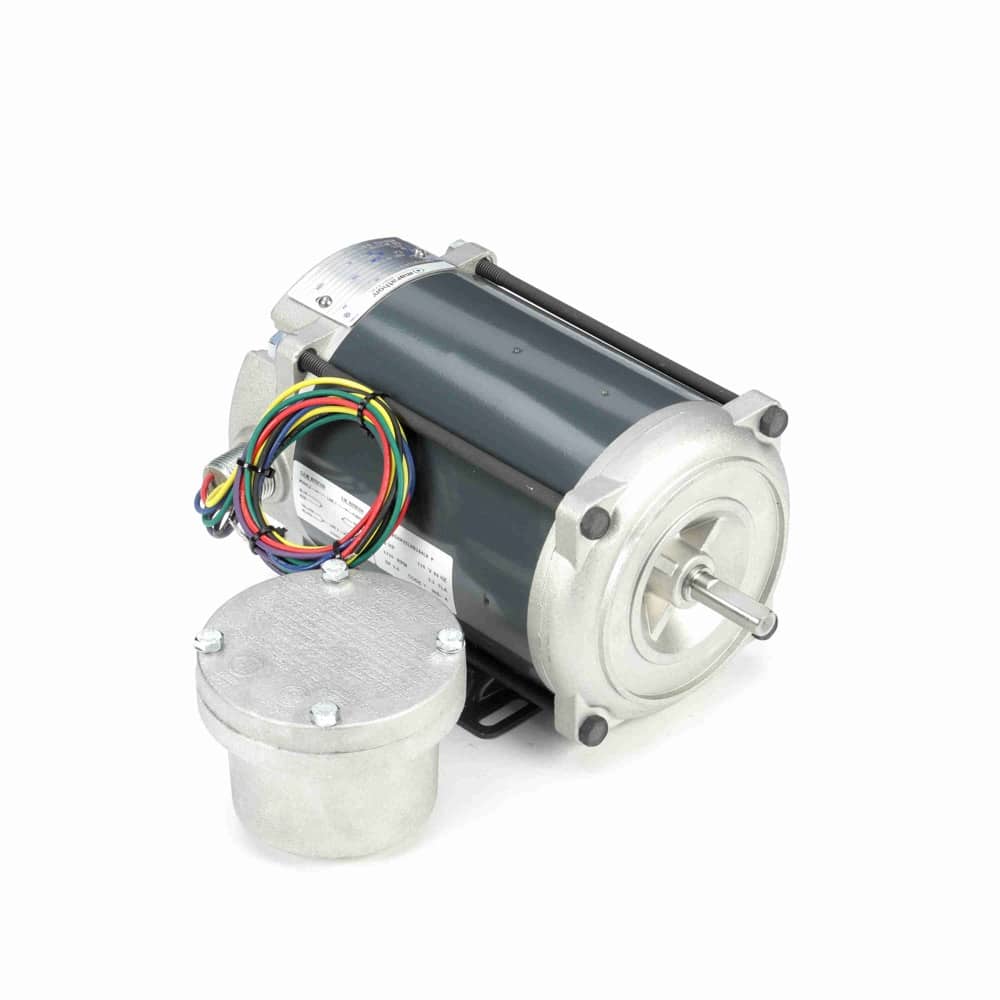

1/6HP Explosion Proof Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Split Phase, 115V, ODP Enclosure, AOL Overload Protection
Contact Us For Pricing
Product Information
Brand
Marathon
Sub-Brand
Hazardous Duty®
Mfr #
HG456
Wright's #
MAR HG456
Country of Origin
MEX
Specifications
C Dim
10.31"
Electrical Type
Split Phase
Enclosure
ODP
Full Load Efficiency
62
Frame
48
Frequency
60 Hz
HP
0.17 HP
HP2
1/6 HP
Insulation Class
A
kW
0.13kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
3.3
Rated Voltage
115
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1
Shaft Diameter
0.5"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Meets T3B temperature code with a maximum surface temperature of 329° F.
Permanently lubricated, sealed bearings extend the lifetime of the motor.
140 frame motor and below include explosion proof conduit box, shipped loose.
1/6HP Explosion Proof Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Split Phase, 115V, Explosion Proof Non Ventilated Enclosure, AOL Overload Protection
