Marathon
1/3HP SpP 48Y 4P ODP 1725 100-120/200-240V AOL WB CARB
Mfr # H712 | Wright’s # MAR H712

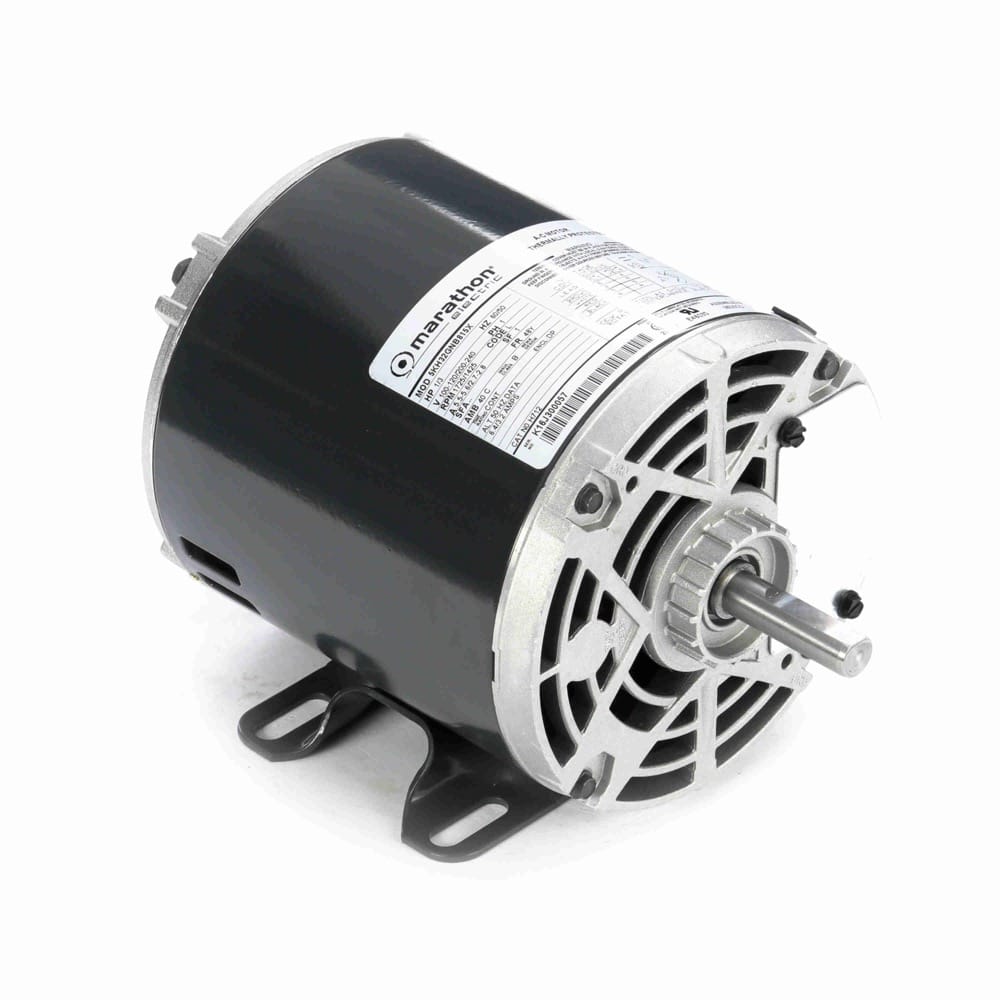

1/3HP Carbonator Pump Motor, 1 Phase, 48Y Frame, 1725/1425 RPM, 1 Speed, Split Phase, 100-120/200-240V, ODP Enclosure, AOL Overload Protection
$250.31
Product Information
Brand
Marathon
Mfr #
H712
Wright's #
MAR H712
Country of Origin
MEX
Specifications
C Dim
9.38"
Electrical Type
Split Phase
Enclosure
ODP
Full Load Efficiency
63.7
Frame
48Y
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
5.5-5.6,2.7-2.8
Rated Voltage
100-120/200-240
Rotation
Counterclockwise/Clockwise
RPM
1725
Service Factor
1
Shaft Diameter
0.63"
Speed
1725/1425
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Automatic reset thermal protector (as noted) protects against overload.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Interchangeable with most OEM designs.
1/3HP Carbonator Pump Motor, 1 Phase, 48Y Frame, 1725/1425 RPM, 1 Speed, Split Phase, 100-120/200-240V, Drip Proof Enclosure, AOL Overload Protection
