Marathon

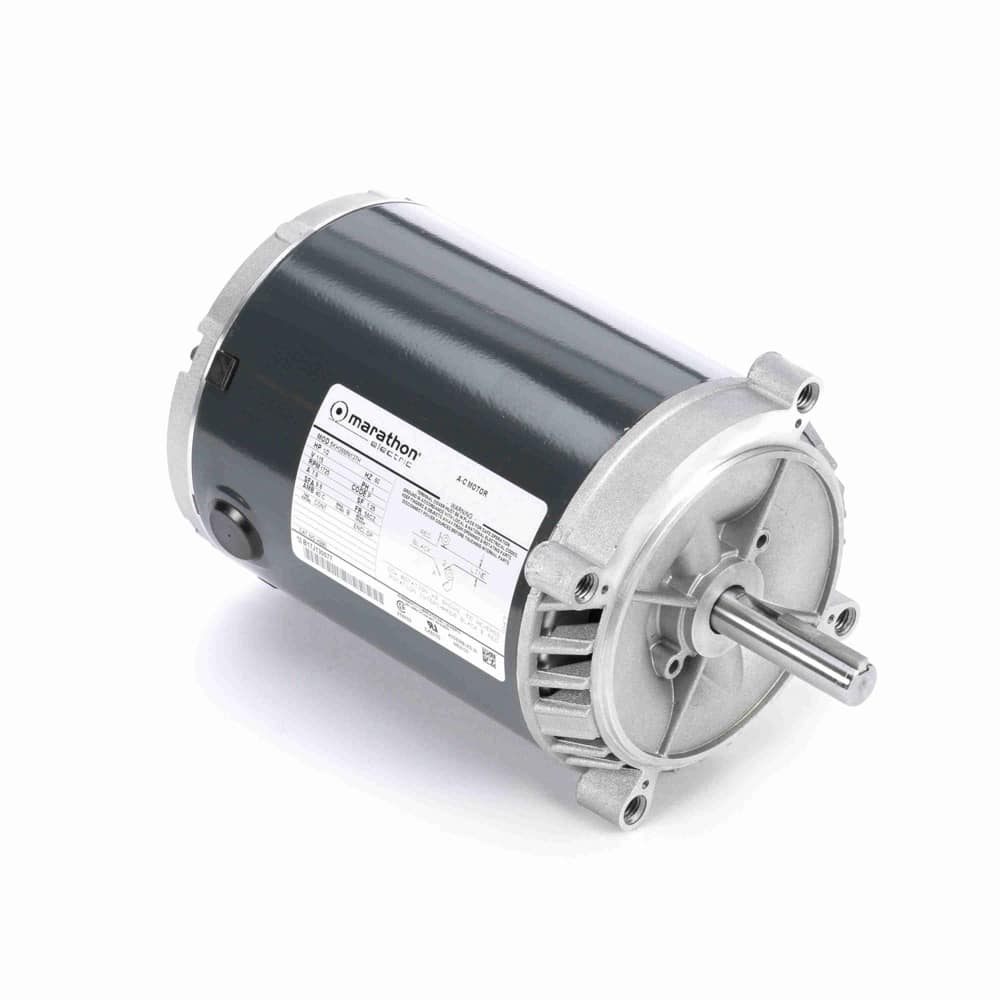

1/2HP SpP 56CZ ODP 1725 115V NB BM
Mfr # H290 | Wright’s # MAR H290
1/2HP Fan & Blower Motor, 1 Phase, 56CZ Frame, 1725 RPM, 1 Speed, Split Phase, 115V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Marathon
Mfr #
H290
Wright's #
MAR H290
Country of Origin
MEX
Specifications
C Dim
10.68"
Electrical Type
Split Phase
Enclosure
ODP
Full Load Efficiency
61.4
Frame
56CZ
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
7.9
Rated Voltage
115
Rotation
Counterclockwise/Clockwise
RPM
1725
Service Factor
1.25
Shaft Diameter
0.63"
Speed
1725
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
Double shielded ball bearings provide longer service life.
Continuous or continuous air over duty design allows consistent operation at the rated power(as noted).
Various mounting configurations (as noted).
1/2HP Fan & Blower Motor, 1 Phase, 56CZ Frame, 1725 RPM, 1 Speed, Split Phase, 115V, Drip Proof Enclosure
