Marathon

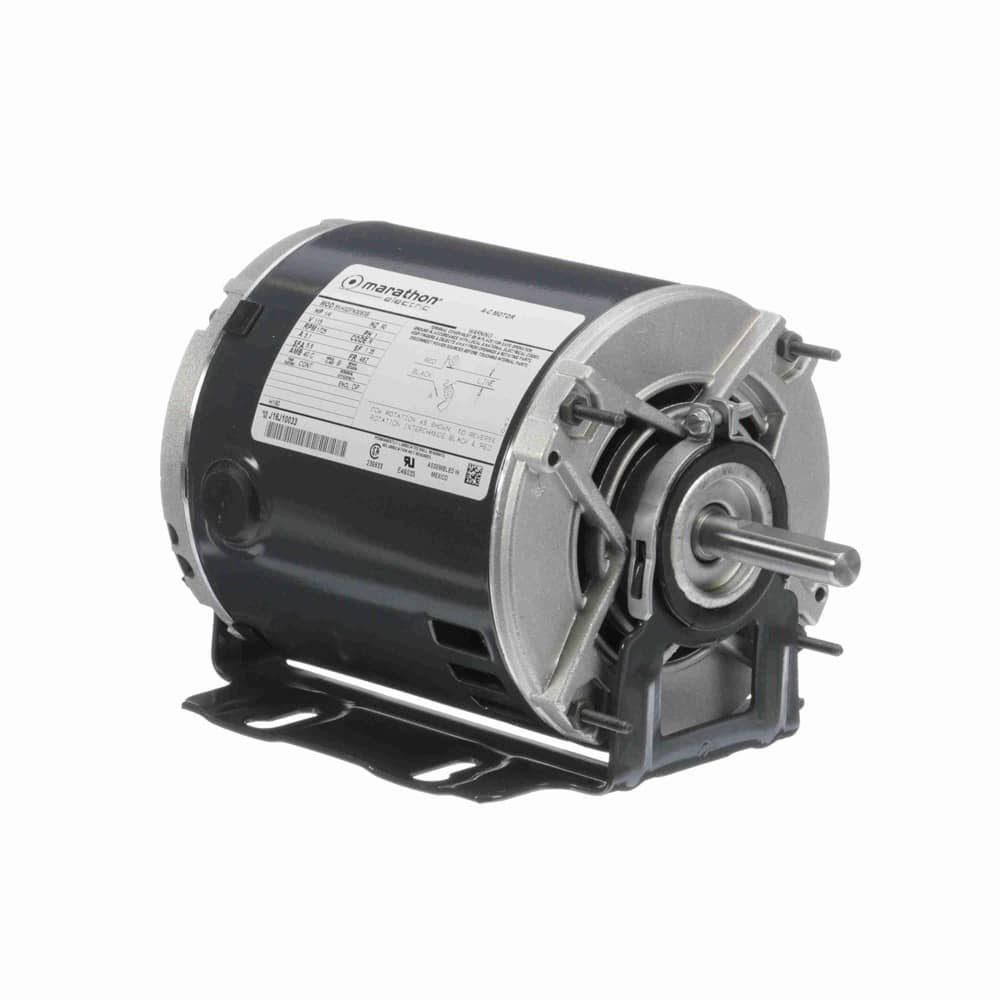

1/4HP SpP 48Z ODP 1725 115V RB BM
Mfr # H160 | Wright’s # MAR H160
1/4HP Fan & Blower Motor, 1 Phase, 48Z Frame, 1725 RPM, 1 Speed, Split Phase, 115V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Marathon
Mfr #
H160
Wright's #
MAR H160
Country of Origin
MEX
Specifications
C Dim
9.32"
Electrical Type
Split Phase
Enclosure
ODP
Full Load Efficiency
52.8
Frame
48Z
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
5.1
Rated Voltage
115
Rotation
Counterclockwise/Clockwise
RPM
1725
Service Factor
1.35
Shaft Diameter
0.5"
Speed
1725
Starting Method
Description
Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
1/4HP Fan & Blower Motor, 1 Phase, 48Z Frame, 1725 RPM, 1 Speed, Split Phase, 115V, Drip Proof Enclosure
