Marathon
1/4HP SpP 56 6P TENV 1140 115V AOL RB Farm
Mfr # H137 | Wright’s # MAR H137

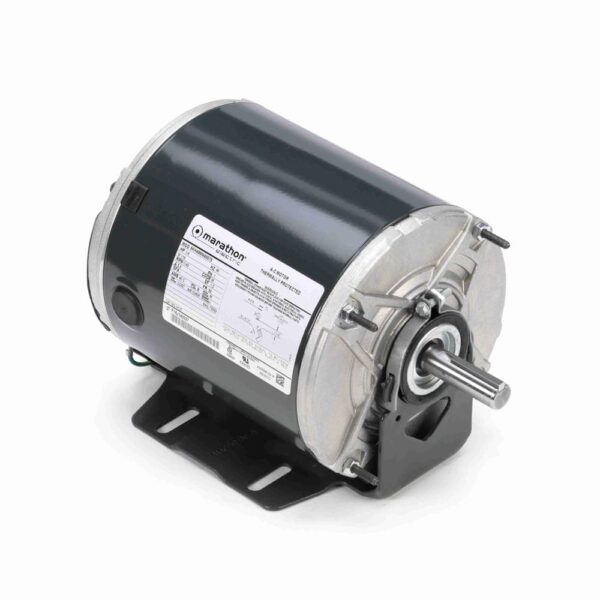

1/4HP Farm Duty Motor, 1 Phase, 56 Frame, 1140 RPM, 1 Speed, Split Phase, 115V, ODP Enclosure, AOL Overload Protection
Contact Us For Pricing
Product Information
Brand
Marathon
Mfr #
H137
Wright's #
MAR H137
Country of Origin
MEX
Specifications
C Dim
10.48"
Electrical Type
Split Phase
Enclosure
ODP
Full Load Efficiency
53
Frame
56
Frequency
60 Hz
HP
0.25 HP
HP2
1/4 HP
Insulation Class
B
kW
0.19kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
5.6
Rated Voltage
115
Rotation
Counterclockwise/Clockwise
RPM
1140
Service Factor
1
Shaft Diameter
0.63"
Speed
1140
Starting Method
Description
Double-shielded bearings extend the service life of the motor.
EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
Shaft flingers protect bearings from damage caused by dirt and rain.
Condensation drains allow the motor to expel and drain built-up moisture.
1/4HP Farm Duty Motor, 1 Phase, 56 Frame, 1140 RPM, 1 Speed, Split Phase, 115V, Totally Enclosed Non Ventilated Enclosure, AOL Overload Protection
