Marathon

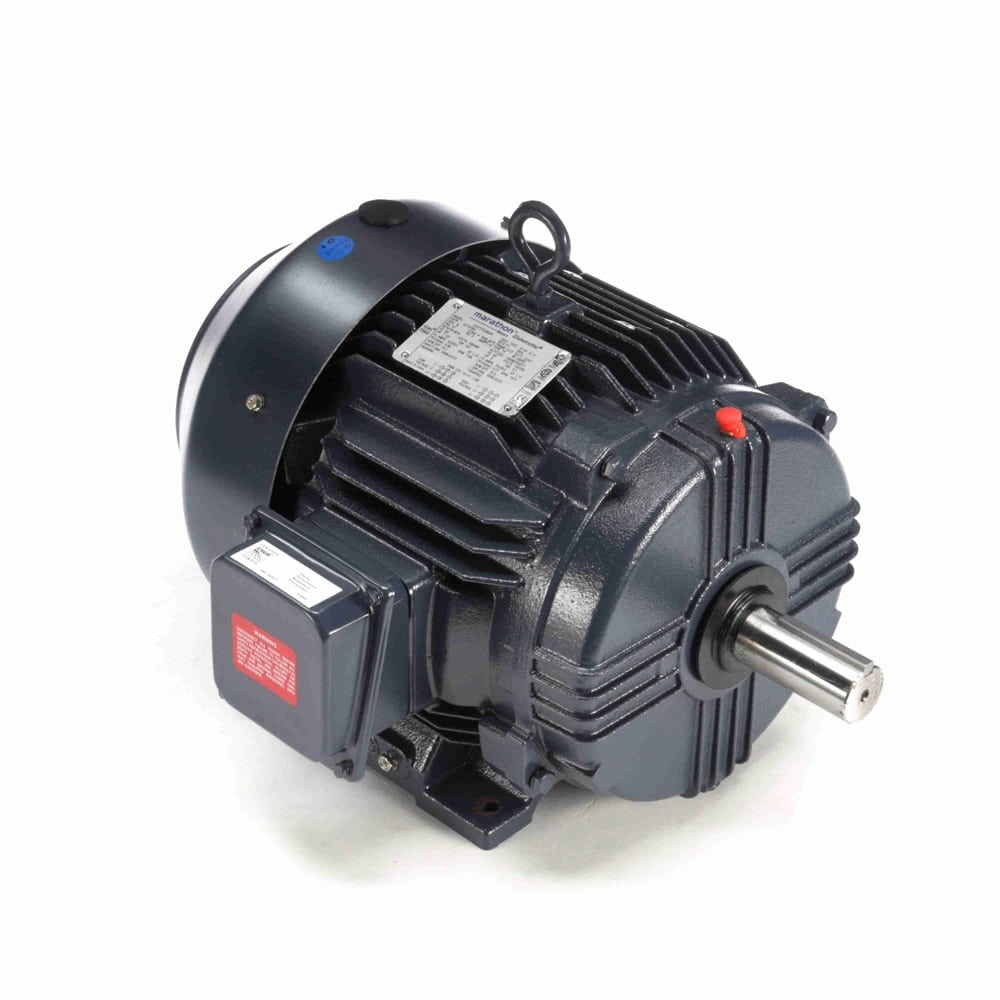

7.5HP 3PH 213T 4P TEFC 1800 230/460V WB
Mfr # GT1016A | Wright’s # MAR GT1016A
Contact Us For Pricing
Product Information
Brand
Marathon
Sub-Brand
Globetrotter®
Mfr #
GT1016A
Wright's #
MAR GT1016A
Country of Origin
MEX
Specifications
C Dim
18.53"
Electrical Type
Squirrel Cage Inverter Rated
Enclosure
ODP
Full Load Efficiency
91.7
Frame
213T
Frequency
60 Hz
HP
7.5 HP
HP2
7-1/2 HP
Insulation Class
F
kW
5.6kW
Material
Cast Iron
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
19/9.5 & 16.2/8.1
Rated Voltage
230/460
Rotation
Reversible
RPM
1768
Service Factor
1.15
Shaft Diameter
1.375"
Speed
1768 & 1475
Starting Method
