Marathon

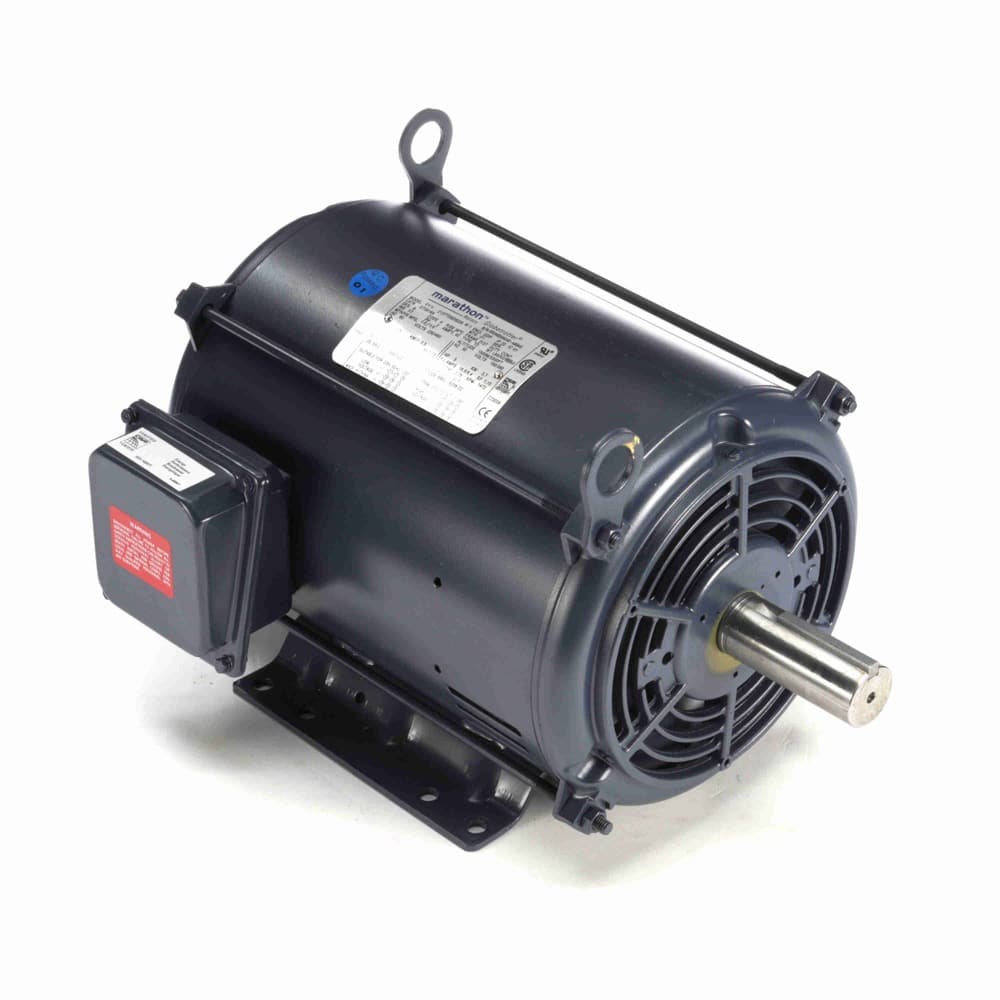

7.5HP 3PH 213T 4P ODP 1800 230/460V
Mfr # GT0016A | Wright’s # MAR GT0016A
7.5 & 5HP General Purpose Motor, 3 Phase, 213T Frame, 1766 & 1472 RPM, 1 Speed, Squirrel Cage Inverter Rated, 230/460V, Drip Proof Enclosure
Contact Us For Pricing
Product Information
Brand
Marathon
Sub-Brand
Globetrotter®
Mfr #
GT0016A
Wright's #
MAR GT0016A
Country of Origin
MEX
Specifications
C Dim
17.52"
Electrical Type
Squirrel Cage Inverter Rated
Enclosure
ODP
Full Load Efficiency
91
Frame
213T
Frequency
60 Hz
HP
7.5 HP
HP2
7-1/2 HP
Insulation Class
F
kW
5.6kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
19.8/9.9 & 16.8/8.4
Rated Voltage
230/460
Rotation
Reversible
RPM
1766
Service Factor
1.15
Shaft Diameter
1.375"
Speed
1800/1500
Starting Method
