Marathon

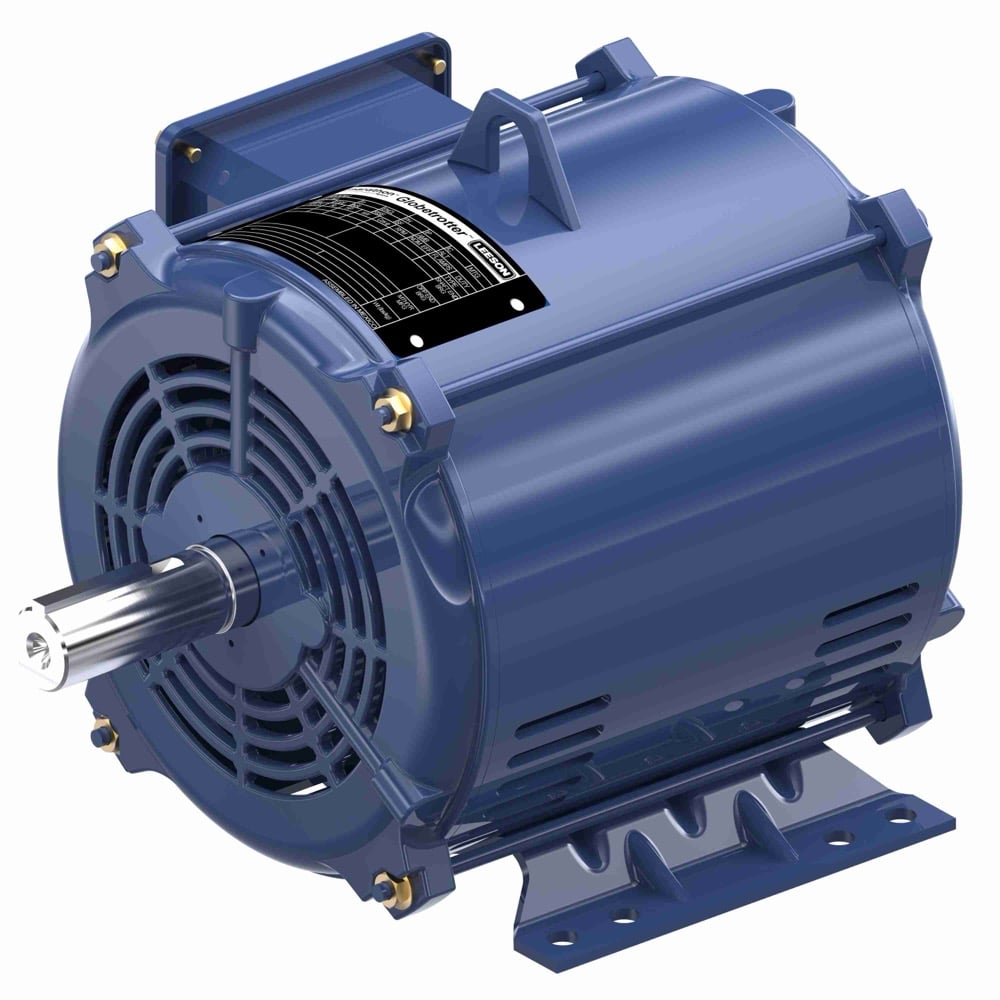

7.5HP 3PH 184T 2P ODP 3600 230/460V

Name: 7.5HP 3PH 184T 2P ODP 3600 230/460V
Brand: Marathon
SKU: 32850
Availability: InStock

Mfr # GT0015A | Wright’s # MAR GT0015A

7.5 & 5HP General Purpose Motor, 3 Phase, 184T Frame, 3510 & 2920 RPM, 1 Speed, Squirrel Cage Inverter Rated, 230/460V, Drip Proof Enclosure

$695.14

Product Information

Brand Marathon

Sub-Brand Globetrotter®

Mfr # GT0015A

Wright's # MAR GT0015A

Country of Origin MEX

Specifications

C Dim 13.25"

Electrical Type Squirrel Cage Inverter Rated

Enclosure ODP

Full Load Efficiency 88.5

Frame 184T

Frequency 60 Hz

HP 7.5 HP

HP2 7-1/2 HP

Insulation Class F

kW 5.6kW

Material Rolled Steel

Max Ambient 40°C

Mounting Type Rigid Base

Number of Poles 2

Number of Speeds 1

Overload Protection No Protection

Phase 3

Rated Current 18.4/9.2 & 16.4/8.2

Rated Voltage 230/460

Rotation Reversible

RPM 3510

Service Factor 1.15

Shaft Diameter 1.125"

Speed 3600/3000

Starting Method

Description

Documents

CAD

Data Sheet

7.5HP 3PH 184T 2P ODP 3600 230/460V
