Marathon

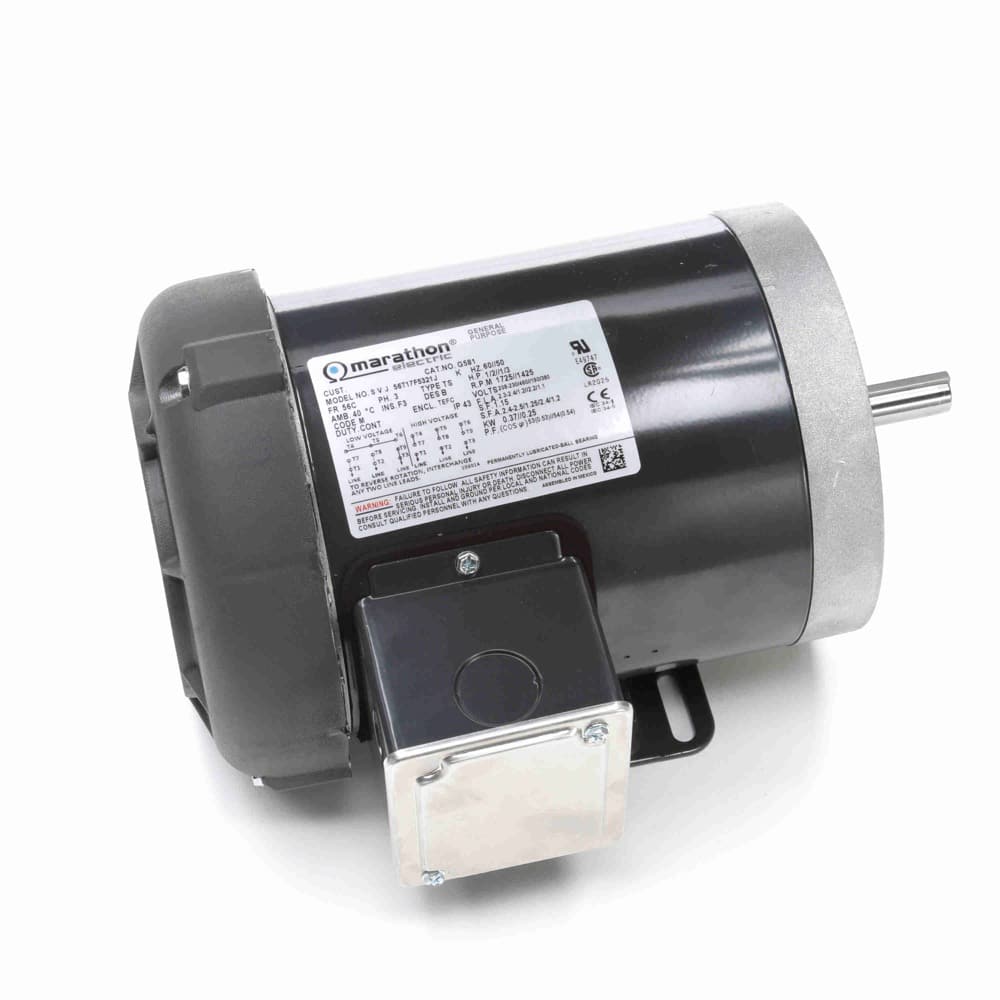

1/2HP 3PH 56C TEFC 1800 208-230/460V WB
Mfr # G581 | Wright’s # MAR G581
0.50 & 0.33HP General Purpose Motor, 3 Phase, 56C Frame, 1725 & 1425 RPM, 1 Speed, Squirrel Cage Inverter Rated, 208-230/460V, Totally Enclosed Fan Cooled Enclosure
Contact Us For Pricing
Product Information
Brand
Marathon
Mfr #
G581
Wright's #
MAR G581
Country of Origin
MEX
Specifications
C Dim
11.81"
Electrical Type
Squirrel Cage Inverter Rated
Enclosure
Totally Enclosed Fan Cooled
Full Load Efficiency
72
Frame
56C
Frequency
60
HP
0.5 HP
HP2
0.50 & 0.33 HP
Insulation Class
F
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Bolt-on Base
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
2.3-2.4/1.2 & 2.2/1.1
Rated Voltage
208-230/460V
Rotation
Reversible
RPM
1725
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1725 & 1425
Starting Method
