Marathon

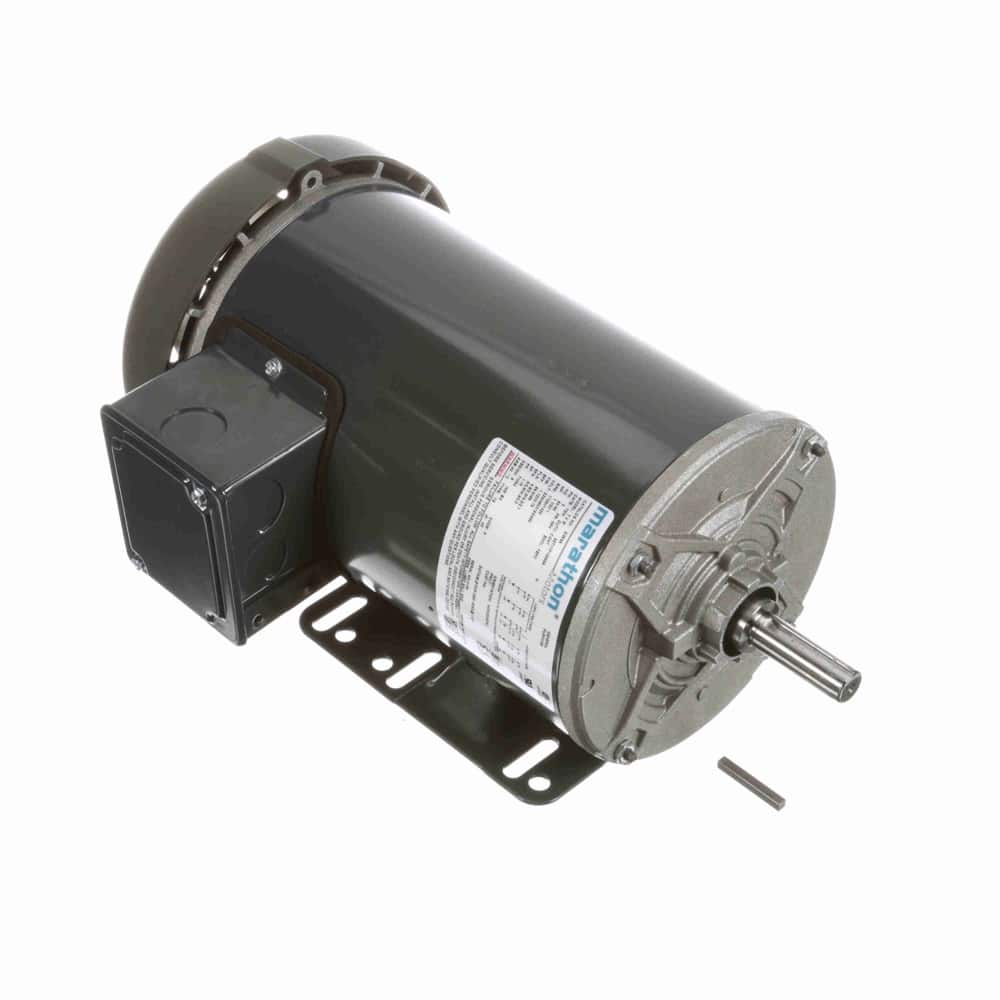

1.5HP 3PH 56H 4P TEFC 1800 230/460V WB
Mfr # G365A | Wright’s # MAR G365A
Contact Us For Pricing
Product Information
Brand
Marathon
Sub-Brand
XRI® General Purpose
Mfr #
G365A
Wright's #
MAR G365A
Country of Origin
MEX
Specifications
C Dim
14.83"
Electrical Type
Squirrel Cage Induction Run
Enclosure
ODP
Full Load Efficiency
86.5
Frame
56H
Frequency
60 Hz
HP
1.5 HP
HP2
1-1/2 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
3
Rated Current
4.6/2.3 & 4.2/2.1
Rated Voltage
230/460
Rotation
Reversible
RPM
1725
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1725 & 1425
Starting Method
