Marathon

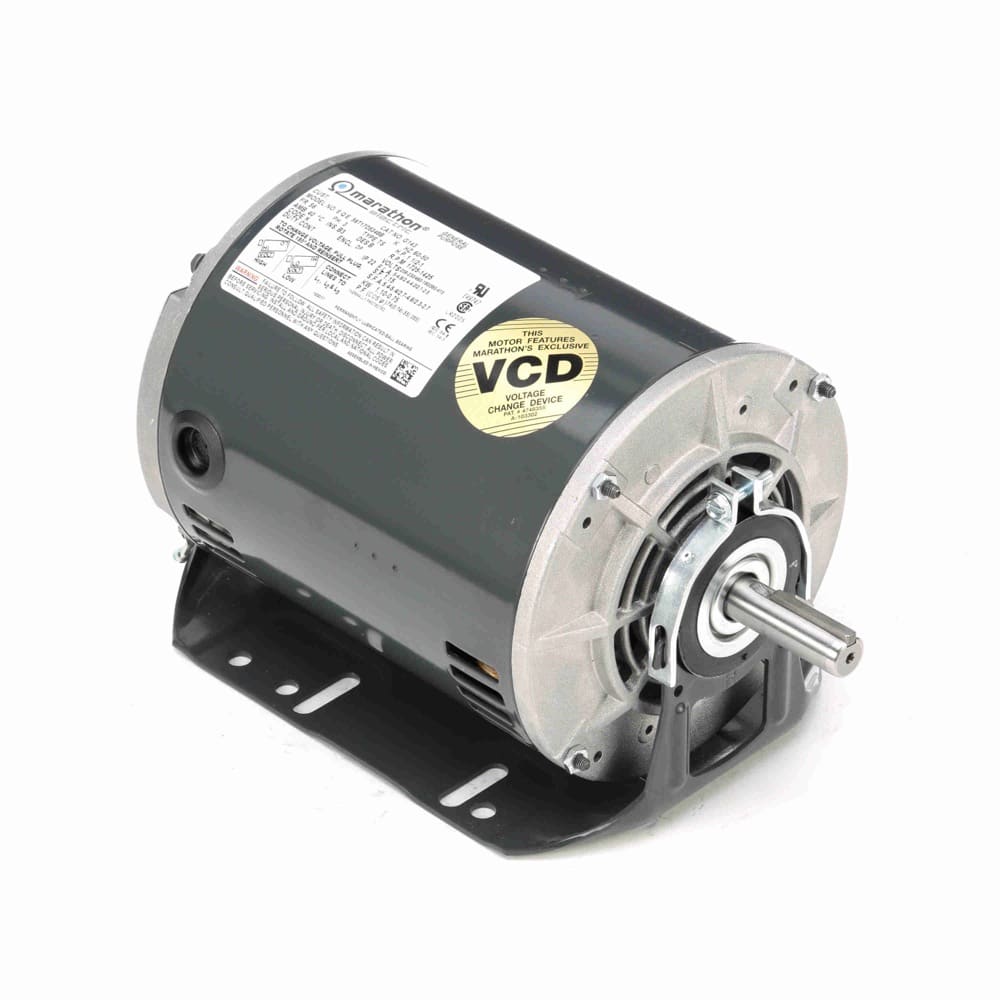

1.5HP 3PH 56 ODP 1800 208-230/460V BM
Mfr # G143 | Wright’s # MAR G143
Contact Us For Pricing
Product Information
Brand
Marathon
Mfr #
G143
Wright's #
MAR G143
Country of Origin
MEX
Specifications
C Dim
11.35"
Electrical Type
Squirrel Cage Induction Run
Enclosure
ODP
Full Load Efficiency
80
Frame
56
Frequency
60 Hz
HP
1.5 HP
HP2
1-1/2 HP
Insulation Class
B
kW
1.1kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
3
Rated Current
5-4.8/2.4 & 4.2/2.1-2.5
Rated Voltage
208-230/460
Rotation
Reversible
RPM
1725
Service Factor
1.15
Shaft Diameter
0.625"
Speed
1725 & 1425
Starting Method
