Marathon

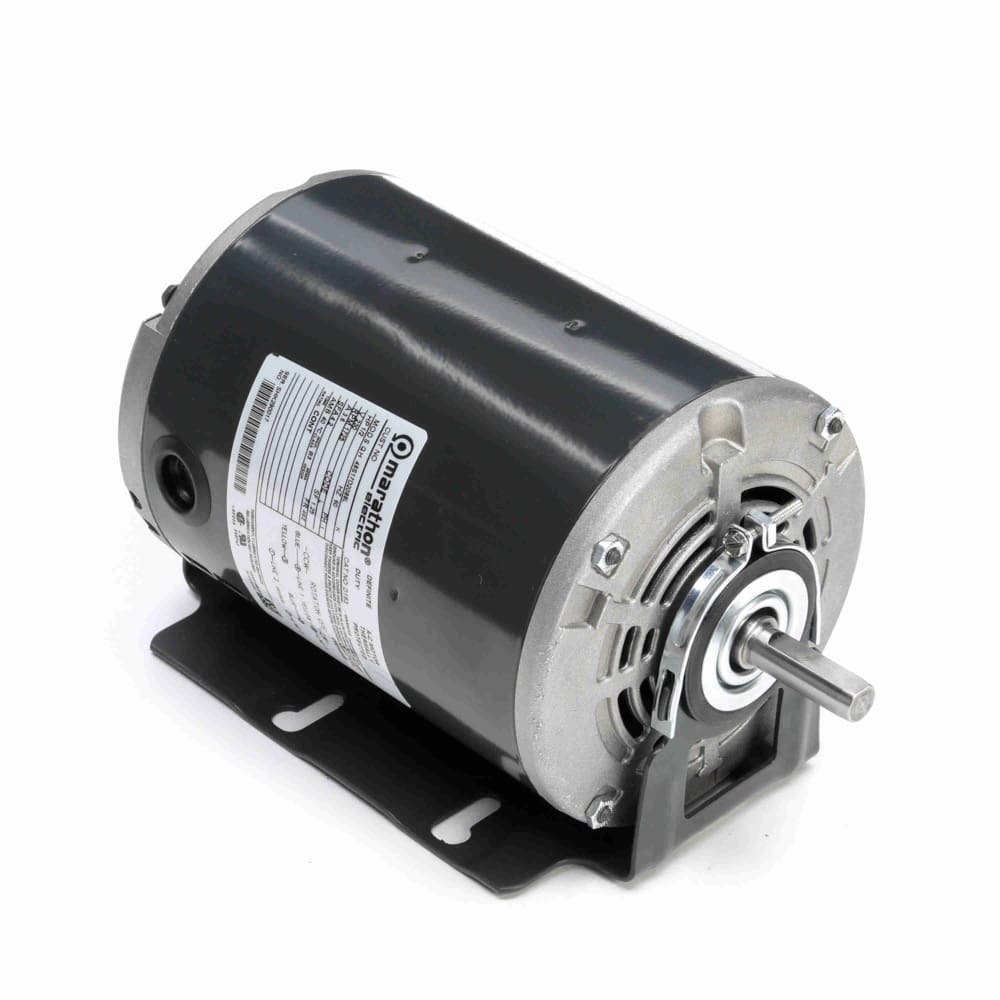

1/2HP SpP 48Z ODP 1725 230V BM
Mfr # D163 | Wright’s # MAR D163
1/2HP Fan & Blower Motor, 1 Phase, 48Z Frame, 1725 RPM, 1 Speed, Split Phase, 230V, ODP Enclosure, AOL Overload Protection
$82.70
Product Information
Brand
Marathon
Mfr #
D163
Wright's #
MAR D163
Country of Origin
MEX
Specifications
C Dim
10.09"
Electrical Type
Split Phase
Enclosure
ODP
Full Load Efficiency
66
Frame
48Z
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
3.6
Rated Voltage
230
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.25
Shaft Diameter
0.5"
Speed
1725
Starting Method
Description
Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
1/2HP Fan & Blower Motor, 1 Phase, 48Z Frame, 1725 RPM, 1 Speed, Split Phase, 230V, Drip Proof Enclosure, AOL Overload Protection
