Marathon

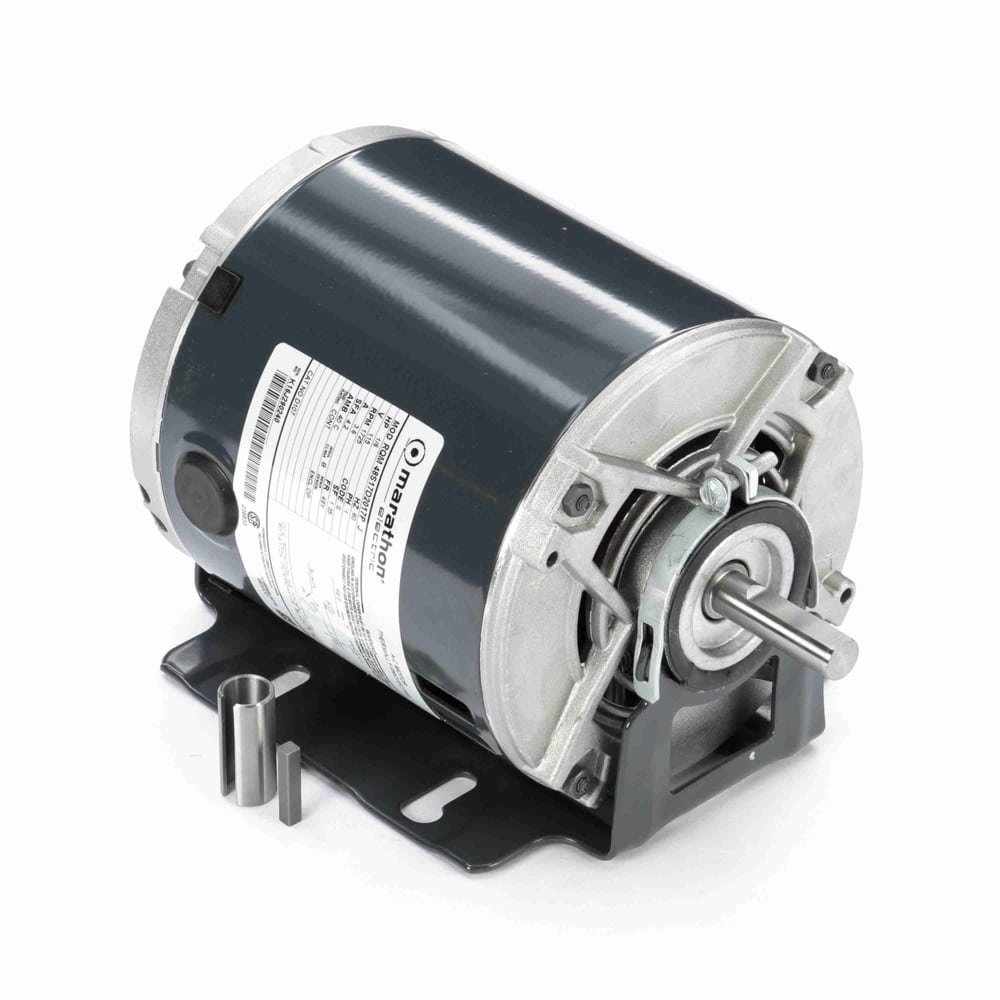

1/6HP SpP 48 ODP 1725 115V BM
Mfr # D107 | Wright’s # MAR D107
1/6HP Fan & Blower Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Split Phase, 115V, ODP Enclosure, AOL Overload Protection
Contact Us For Pricing
Product Information
Brand
Marathon
Mfr #
D107
Wright's #
MAR D107
Country of Origin
MEX
Specifications
C Dim
8.99"
Electrical Type
Split Phase
Enclosure
ODP
Full Load Efficiency
55
Frame
48
Frequency
60 Hz
HP
0.17 HP
HP2
1/6 HP
Insulation Class
B
kW
0.13kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
3.6
Rated Voltage
115
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.35
Shaft Diameter
0.5"
Speed
1725
Starting Method
Description
Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
1/6HP Fan & Blower Motor, 1 Phase, 48 Frame, 1725 RPM, 1 Speed, Split Phase, 115V, Drip Proof Enclosure, AOL Overload Protection
