Marathon

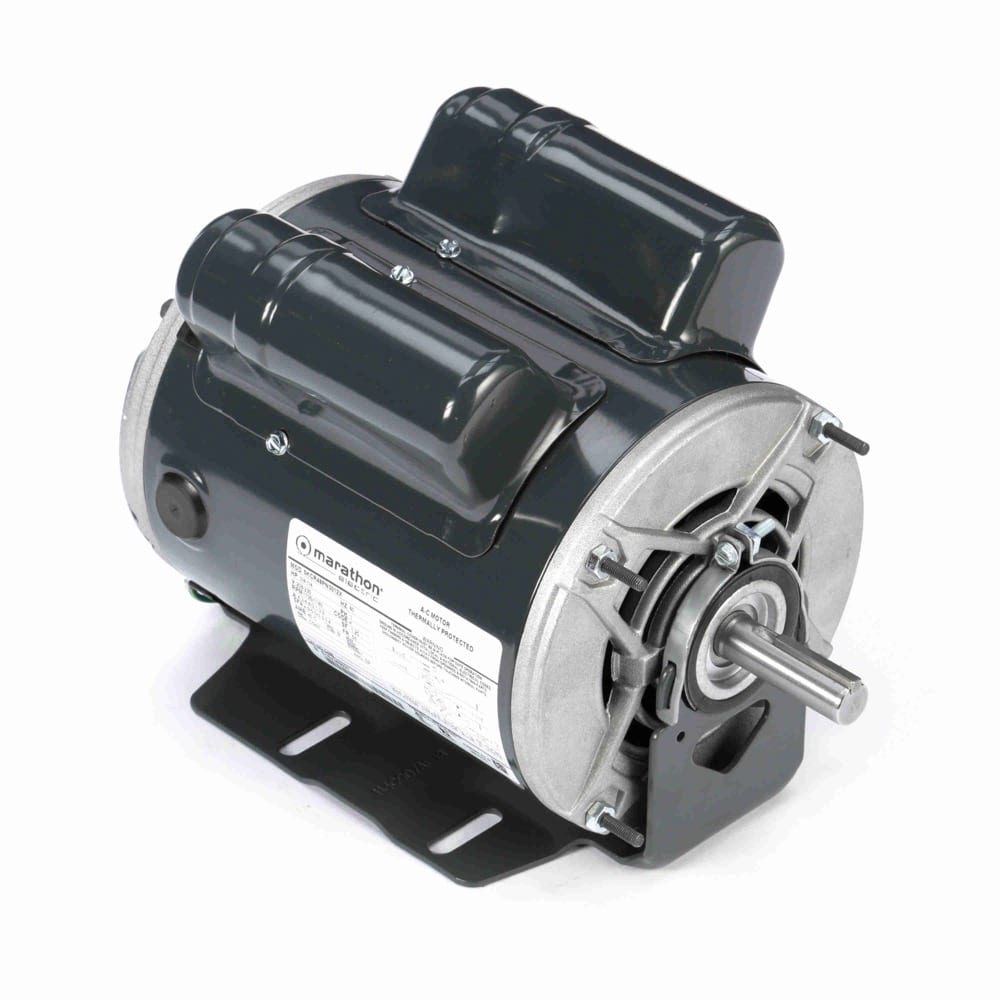

3/4HP 1PH 56 ODP 2spd 1800 208-230V BM
Mfr # C486 | Wright’s # MAR C486
Contact Us For Pricing
Product Information
Brand
Marathon
Mfr #
C486
Wright's #
MAR C486
Country of Origin
MEX
Specifications
C Dim
11.48"
Electrical Type
Capacitor Start Capacitor Run
Enclosure
ODP
Full Load Efficiency
66
Frame
56
Frequency
60 Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
B
kW
0.56kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
2
Overload Protection
Automatic
Phase
1
Rated Current
4.3-4.4,3.1-3.2
Rated Voltage
208-230
Rotation
Counterclockwise/Clockwise
RPM
1725
Service Factor
1.25
Shaft Diameter
0.63"
Speed
1725/1140
Starting Method
