Marathon

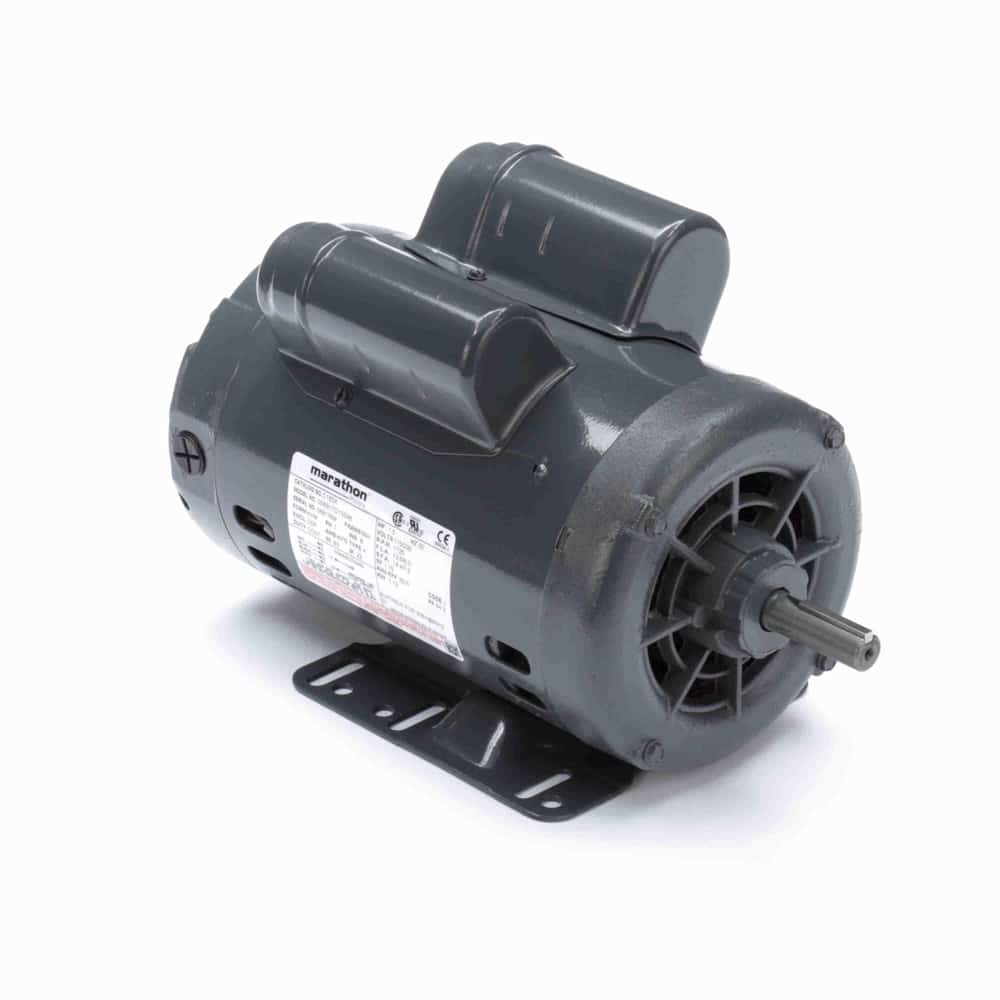

1.5HP 1PH 56 4P ODP 1800 115/230V

Mfr # C185A | Wright’s # MAR C185A

1.5HP General Purpose Motor, 1 Phase, 56 Frame, 1725 RPM, 1 Speed, Capacitor Start Capacitor Run, 115/230V, Drip Proof Enclosure

Contact Us For Pricing

Product Information

Brand Marathon
Mfr # C185A
Wright's # MAR C185A
Country of Origin MEX

Specifications

C Dim 13.62"
Electrical Type Capacitor Start Capacitor Run
Enclosure ODP
Full Load Efficiency 83.8
Frame 56
Frequency 60 Hz
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class B
kW 1.1kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Rigid Base
Number of Poles 4
Number of Speeds 1
Overload Protection No Protection
Phase 1
Rated Current 12.6/6.3
Rated Voltage 115/230
Rotation Selective Counterclockwise
RPM 1725
Service Factor 1.15
Shaft Diameter 0.625"
Speed 1800
Starting Method
