Marathon
1/3HP SpP 48Y ODP 1725 115V RB
Mfr # B304 | Wright’s # MAR B304

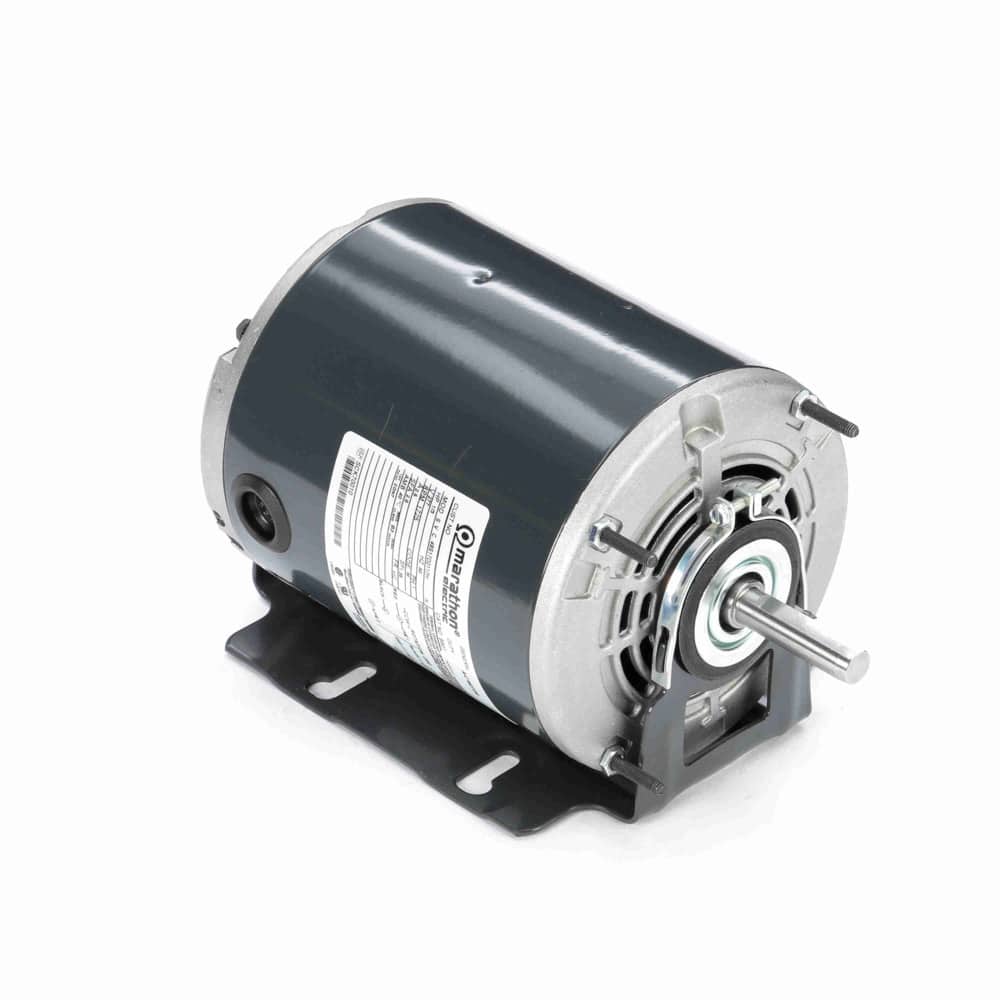

1/3HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1725 RPM, 1 Speed, Split Phase, 115V, ODP Enclosure
Contact Us For Pricing
Product Information
Brand
Marathon
Mfr #
B304
Wright's #
MAR B304
Country of Origin
MEX
Specifications
C Dim
9.32"
Electrical Type
Split Phase
Enclosure
ODP
Full Load Efficiency
64
Frame
48Y
Frequency
60 Hz
HP
0.33 HP
HP2
1/3 HP
Insulation Class
B
kW
0.25kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base - Extended Studs
Number of Poles
4
Number of Speeds
1
Overload Protection
No Protection
Phase
1
Rated Current
5.5
Rated Voltage
115
Rotation
Selective Counterclockwise
RPM
1725
Service Factor
1.35
Shaft Diameter
0.5"
Speed
1725
Starting Method
Description
Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
1/3HP Fan & Blower Motor, 1 Phase, 48Y Frame, 1725 RPM, 1 Speed, Split Phase, 115V, Drip Proof Enclosure
