Marathon

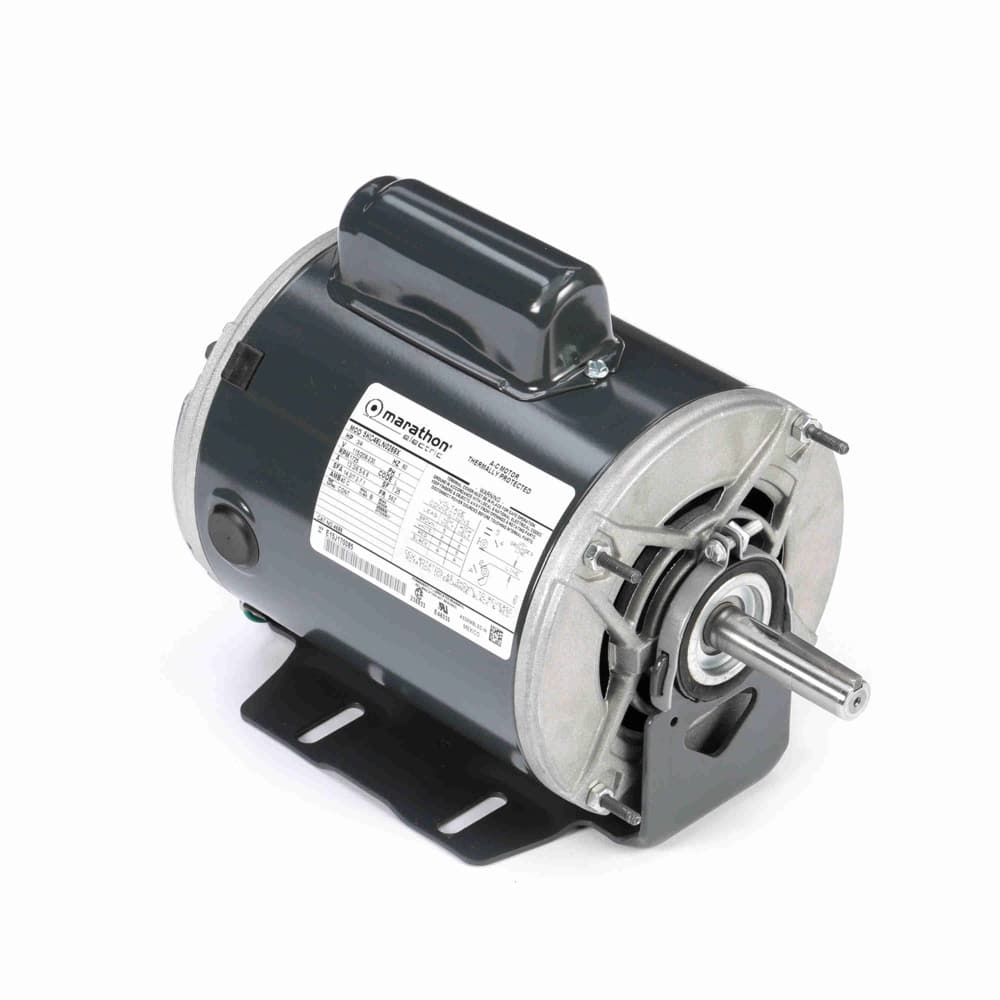

3/4HP 1PH 56Z ODP 1800 115/208-230V BM
Mfr # 4686 | Wright’s # MAR 4686
Contact Us For Pricing
Product Information
Brand
Marathon
Mfr #
4686
Wright's #
MAR 4686
Country of Origin
MEX
Specifications
C Dim
11.15"
Electrical Type
Capacitor Start Induction Run
Enclosure
ODP
Full Load Efficiency
70
Frame
56Z
Frequency
60 Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
B
kW
0.56kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Resilient Base
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
13.3,6.5-6.6
Rated Voltage
115/208-230
Rotation
Counterclockwise/Clockwise
RPM
1725
Service Factor
1.25
Shaft Diameter
0.63"
Speed
1725
Starting Method
