Marathon

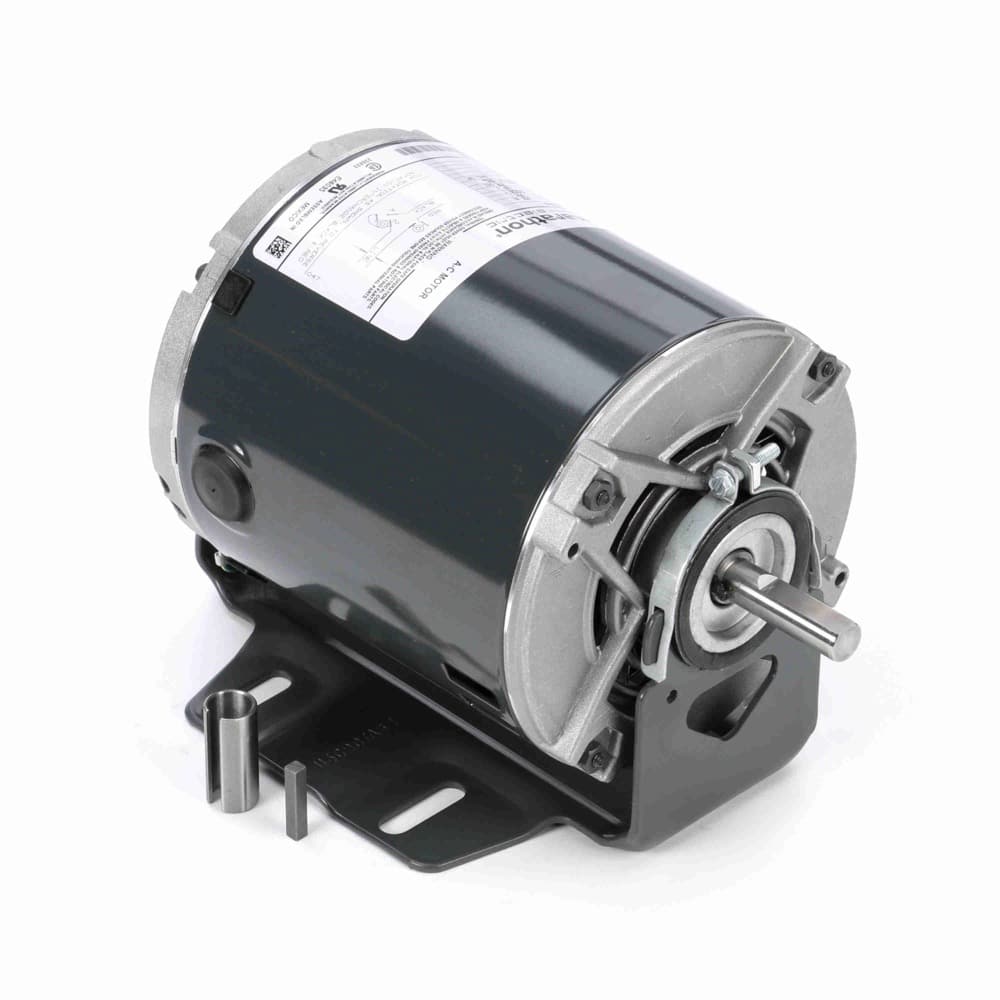

1/3HP SpP 56Z 4P ODP 1725 115V RB

Name: 1/3HP SpP 56Z 4P ODP 1725 115V RB
Brand: Marathon
SKU: 32733
Price: 243.22 USD
Availability: OutOfStock

Mfr # 4377 | Wright’s # MAR 4377

1/3HP General Purpose Motor, 1 Phase, 56Z Frame, 1725 RPM, 1 Speed, Split Phase, 115V, ODP Enclosure

Product Information

Brand Marathon

Mfr # 4377

Wright's # MAR 4377

Country of Origin MEX

Specifications

C Dim 9.19"

Electrical Type Split Phase

Enclosure ODP

Full Load Efficiency 59.5

Frame 56Z

Frequency 60 Hz

HP 0.33 HP

HP2 1/3 HP

Insulation Class B

kW 0.25kW

Material Rolled Steel

Max Ambient 40°C

Mounting Type Resilient Base

Number of Poles 4

Number of Speeds 1

Overload Protection No Protection

Phase 1

Rated Current 6.2

Rated Voltage 115

Rotation Counterclockwise/Clockwise

RPM 1725

Service Factor 1

Shaft Diameter 0.5"

Speed 1725

Starting Method

Description

UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Premium efficiency promotes improved reliability.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.

1/3HP General Purpose Motor, 1 Phase, 56Z Frame, 1725 RPM, 1 Speed, Split Phase, 115V, Drip Proof Enclosure

Documents

Data Sheet

1/3HP SpP 56Z 4P ODP 1725 115V RB
