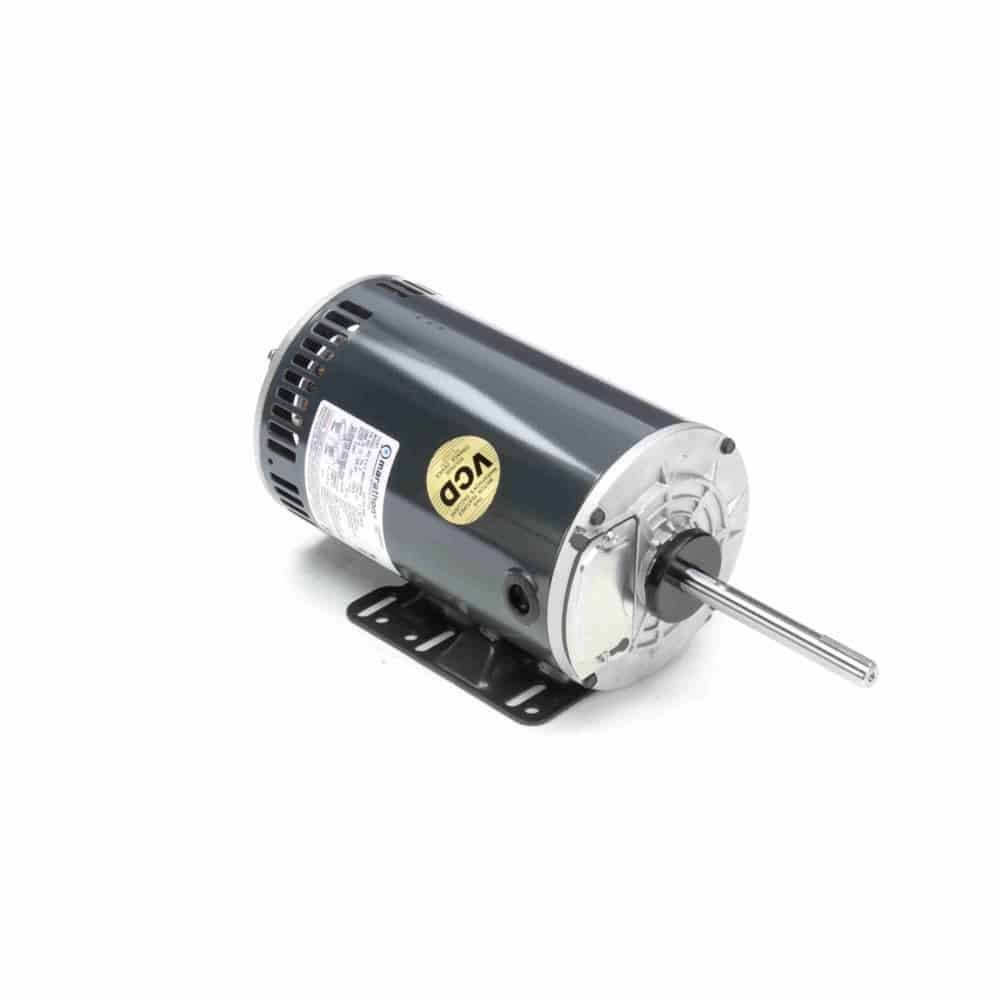

1.50HP 3PH 6.5" OAO 850 208-230/460V AOL WB 56HZ RF
Leeson

1.50HP 3PH 6.5″ OAO 850 208-230/460V AOL WB 56HZ RF

Mfr # X531 | Wright’s # LSN X531

1-1/2HP Refrigeration Motor, 3 Phase, 56HZ (56H, 143T, 145T Combination Base) Frame, 850 & 710 RPM, 1 Speed, Squirrel Cage Induction Run, 208-230/460V, OAO Enclosure, Automatic Overload Protection

2 in stock

Sign in to access special pricing and availability.
x

$902.43

Product Information

Brand Leeson
Mfr # X531
Wright's # LSN X531
Country of Origin MEX

Specifications

C Dim 16.68"
Electrical Type Squirrel Cage Induction Run
Enclosure OAO
Full Load Efficiency 73.5
Frame 56HZ
Frequency 60 Hz
HP 1.5 HP
HP2 1-1/2 HP
Insulation Class H
kW 1.1kW
Material Rolled Steel
Max Ambient 70°C
Mounting Type Rigid Base
Number of Poles 8
Number of Speeds 1
Overload Protection Automatic
Phase 3
Rated Current 7-7/3.5 & 5.8/2.9
Rated Voltage 208-230/460
Rotation Reversible
RPM 850
Service Factor 1
Shaft Diameter 0.625"
Speed 850 & 710
Starting Method

Description

70°C ambient
Enclosed shaft end bracket, vented frame
Continuous duty, air over
Automatic reset thermal protector
Shaft slinger, Threaded lead exit
Nameplated 60/50 hertz, 190/380 Volts, at next lower horsepower
Double sealed ball bearings
Flat and keyway on shaft
Patented VCD™ – Voltage Change Device
56H, 143T, and 145T combination base with 12 mounting holes
