Leeson
1.50HP 3PH 56Y 8P OAO 850 208-230/460V AOL CF
Mfr # X530 | Wright’s # LSN X530

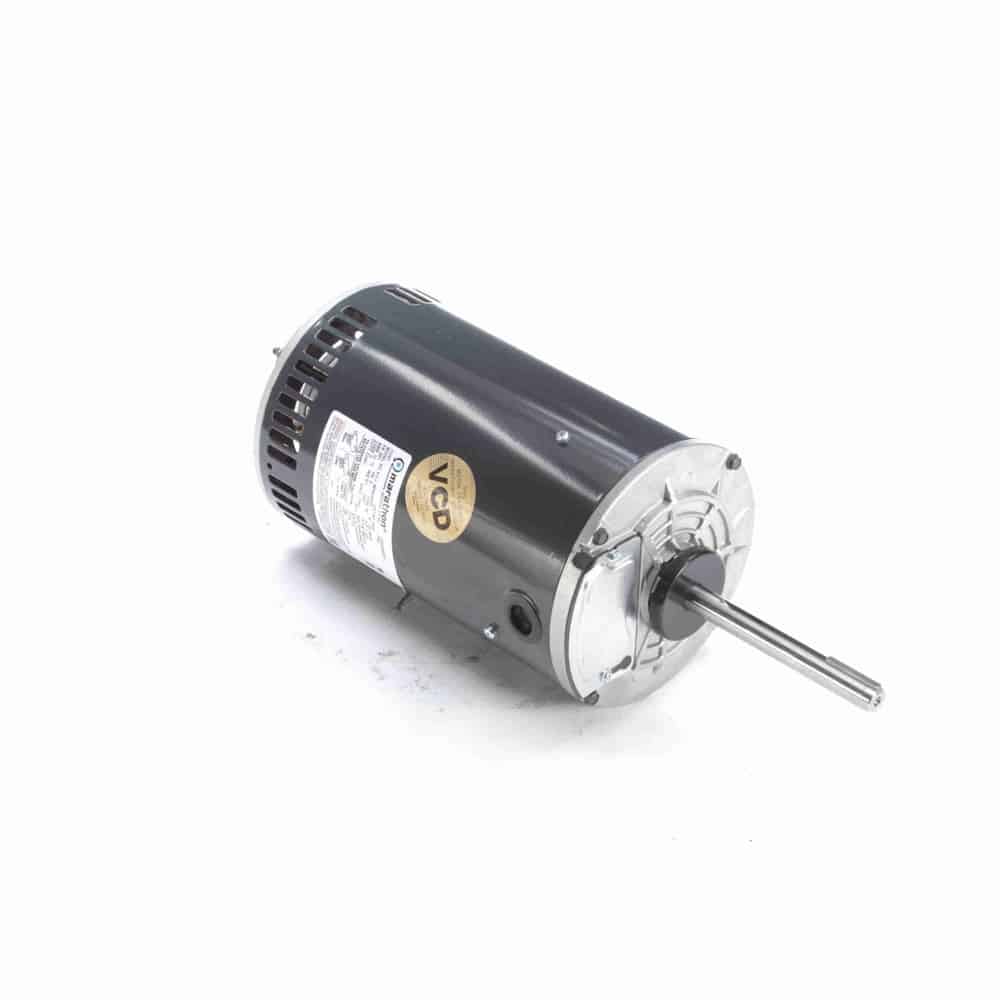

1-1/2HP Condenser Fan Motor, 3 Phase, 56Y Frame, 850 & 715 RPM, 1 Speed, Squirrel Cage Induction Run, 208-230/460V, OAO Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
X530
Wright's #
LSN X530
Country of Origin
MEX
Specifications
C Dim
17.06"
Electrical Type
Squirrel Cage Induction Run
Enclosure
OAO
Full Load Efficiency
72
Frame
56Y
Frequency
60 Hz
HP
1.5 HP
HP2
1-1/2 HP
Insulation Class
H
kW
1.1kW
Material
Rolled Steel
Max Ambient
70°C
Mounting Type
Round Belly Band
Number of Poles
8
Number of Speeds
1
Overload Protection
Automatic
Phase
3
Rated Current
7.5-6.8/3.4 & 6.2/3.1
Rated Voltage
208-230/460
Rotation
Reversible
RPM
850
Service Factor
1
Shaft Diameter
0.625"
Speed
850 & 715
Starting Method
Description
Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
