1HP 3PH 6.5" OAO 850 208-230/460V AOL WB 56HZ RF
Leeson

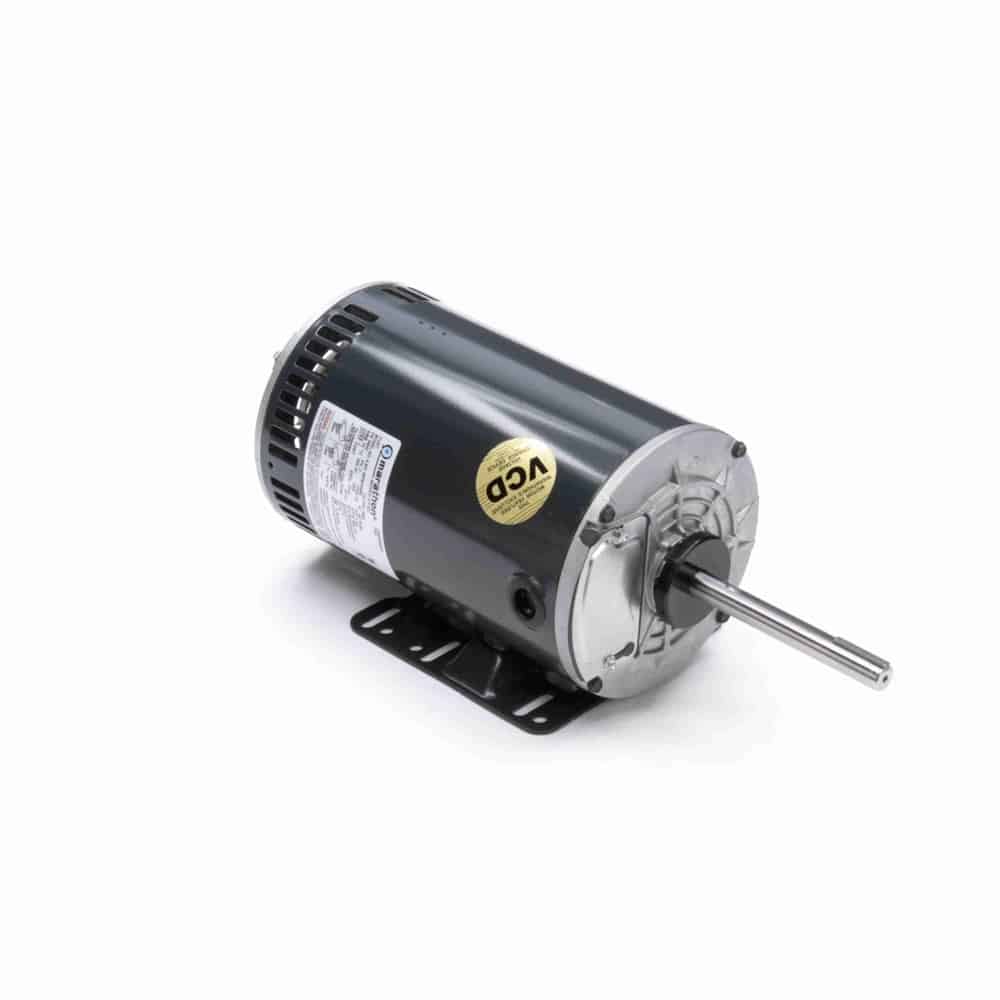

1HP 3PH 6.5″ OAO 850 208-230/460V AOL WB 56HZ RF

Mfr # X528 | Wright’s # LSN X528

1HP Refrigeration Motor, 3 Phase, 56HZ (56H, 143T, 145T Combination Base) Frame, 850 & 715 RPM, 1 Speed, Squirrel Cage Induction Run, 208-230/460V, OAO Enclosure, Automatic Overload Protection

Contact Us For Pricing

Product Information

Brand Leeson
Mfr # X528
Wright's # LSN X528
Country of Origin MEX

Specifications

C Dim 17.06"
Electrical Type Squirrel Cage Induction Run
Enclosure OAO
Full Load Efficiency 74.5
Frame 56HZ
Frequency 60 Hz
HP 1 HP
HP2 1 HP
Insulation Class H
kW 0.75kW
Material Rolled Steel
Max Ambient 70°C
Mounting Type Rigid Base
Number of Poles 8
Number of Speeds 1
Overload Protection Automatic
Phase 3
Rated Current 5.1-5.3/2.65 & 4.8/2.4
Rated Voltage 208-230/460
Rotation Reversible
RPM 850
Service Factor 1
Shaft Diameter 0.625"
Speed 850 & 715
Starting Method

Description

70°C ambient
Enclosed shaft end bracket, vented frame
Continuous duty, air over
Automatic reset thermal protector
Shaft slinger, Threaded lead exit
Nameplated 60/50 hertz, 190/380 Volts, at next lower horsepower
Double sealed ball bearings
Flat and keyway on shaft
Patented VCD™ – Voltage Change Device
56H, 143T, and 145T combination base with 12 mounting holes
