Leeson

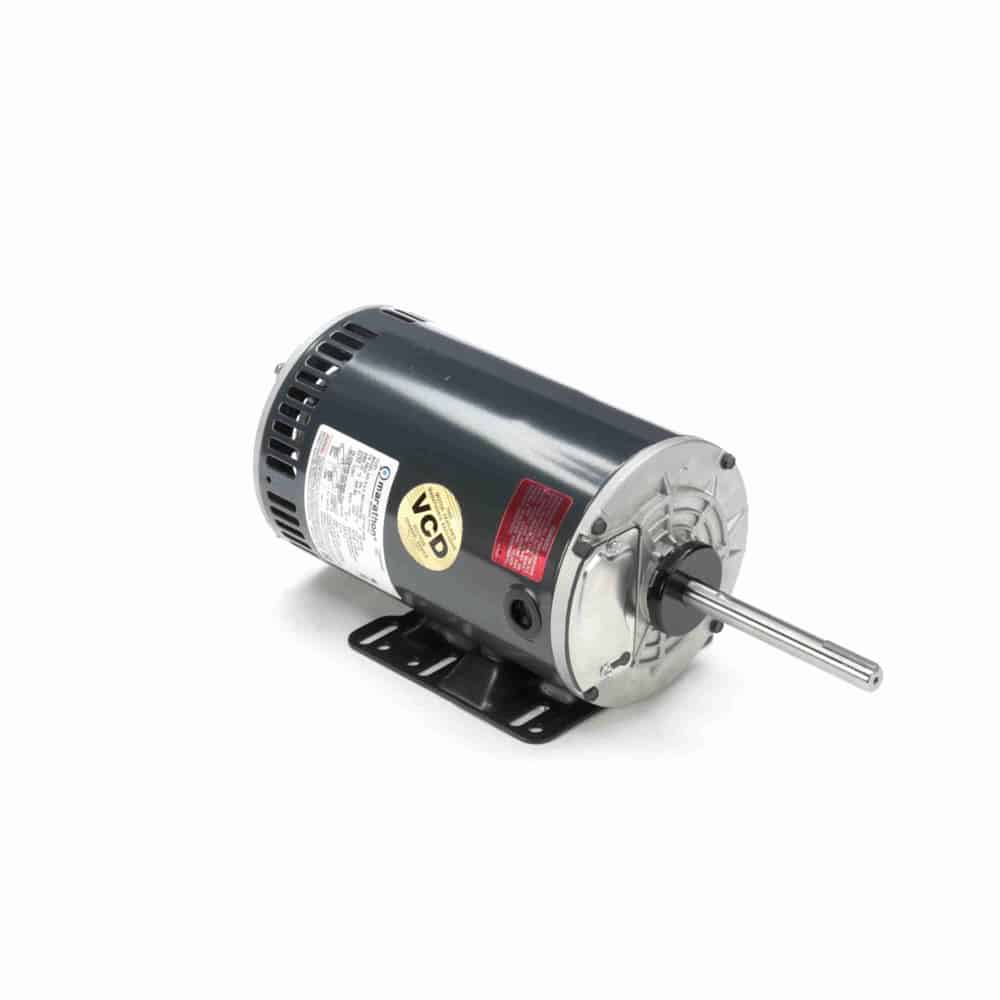

2HP 3PH 6.5″ OAO 1140 208-230/460V AOL WB 56HZ RF
Mfr # X525 | Wright’s # LSN X525
2HP Refrigeration Motor, 3 Phase, 56HZ (56H, 143T, 145T Combination Base) Frame, 1140 & 950 RPM, 1 Speed, Squirrel Cage Induction Run, 208-230/460V, OAO Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
X525
Wright's #
LSN X525
Country of Origin
MEX
Specifications
C Dim
16.68"
Electrical Type
Squirrel Cage Induction Run
Enclosure
OAO
Full Load Efficiency
81.5
Frame
56HZ
Frequency
60 Hz
HP
2 HP
HP2
2 HP
Insulation Class
B
kW
1.5kW
Material
Rolled Steel
Max Ambient
70°C
Mounting Type
Rigid Base
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
3
Rated Current
7.2-6.8/3.4 & 6.6/3.3
Rated Voltage
208-230/460
Rotation
Reversible
RPM
1140
Service Factor
1
Shaft Diameter
0.625"
Speed
1140 & 950
Starting Method
Description
70°C ambient
Enclosed shaft end bracket, vented frame
Continuous duty, air over
Automatic reset thermal protector
Shaft slinger, Threaded lead exit
Nameplated 60/50 hertz, 190/380 Volts, at next lower horsepower
Double sealed ball bearings
Flat and keyway on shaft
Patented VCD™ – Voltage Change Device
56H, 143T, and 145T combination base with 12 mounting holes
