Leeson

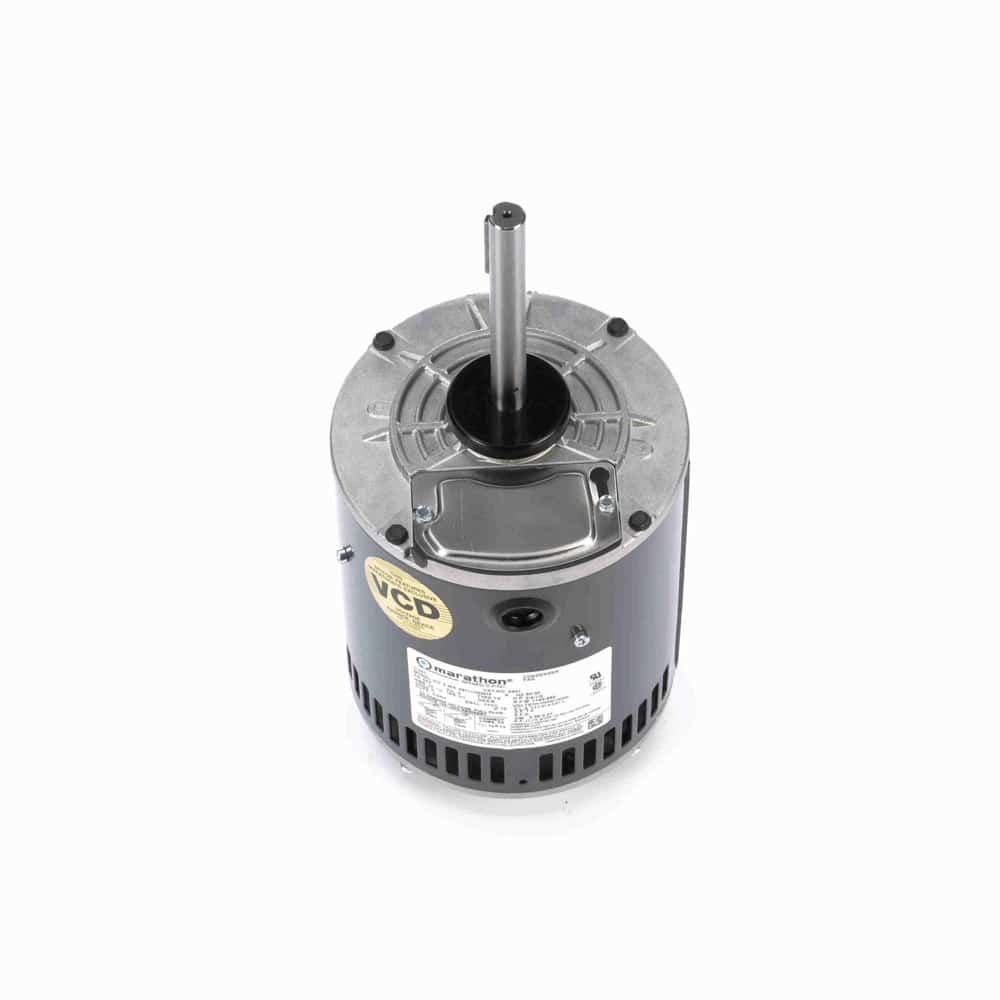

0.75HP 3PH 56Y 6P OAO 1140 200-230/460V AOL CF
Mfr # X501 | Wright’s # LSN X501
3/4HP Condenser Fan Motor, 3 Phase, 56Y Frame, 1140 & 950 RPM, 1 Speed, Squirrel Cage Induction Run, 200-230/460V, OAO Enclosure, Automatic Overload Protection
$434.46
Product Information
Brand
Leeson
Mfr #
X501
Wright's #
LSN X501
Country of Origin
MEX
Specifications
C Dim
14.56"
Electrical Type
Squirrel Cage Induction Run
Enclosure
OAO
Full Load Efficiency
74
Frame
56Y
Frequency
60 Hz
HP
0.75 HP
HP2
3/4 HP
Insulation Class
H
kW
0.56kW
Material
Rolled Steel
Max Ambient
70°C
Mounting Type
Round Belly Band
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
3
Rated Current
3.2-3.2/1.6 & 2.6/1.3
Rated Voltage
200-230/460
Rotation
Reversible
RPM
1140
Service Factor
1
Shaft Diameter
0.625"
Speed
1140 & 950
Starting Method
Description
Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
