Leeson

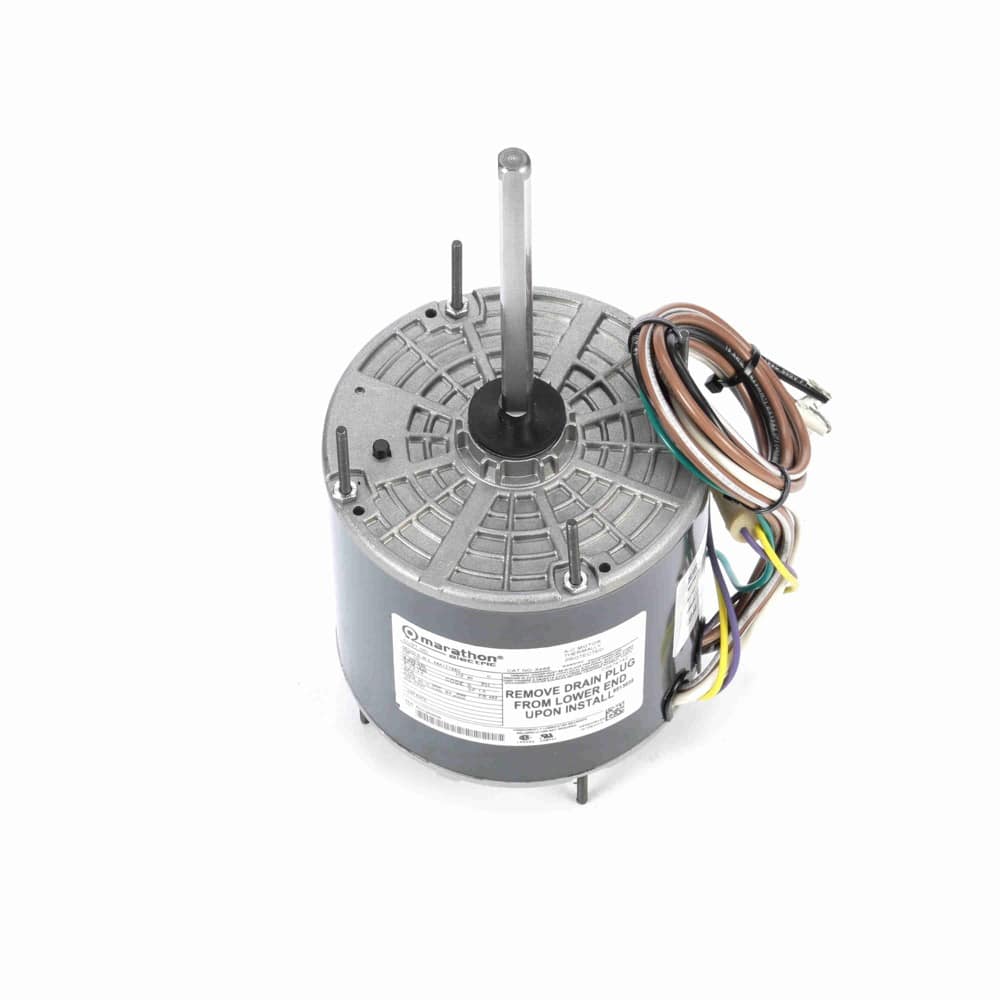

0.50HP 1PH 48Z 4P TEAO 1625 PSC 208-230V AOL CF
Mfr # X468 | Wright’s # LSN X468
1/2HP Condenser Fan Motor, 1 Phase, 48Z Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 208-230V, TEAO Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand Leeson
Mfr # X468
Wright's # LSN X468
Country of Origin MEX
Specifications
C Dim 11.75"
Electrical Type Permanent Split Capacitor
Enclosure TEAO
Full Load Efficiency 71.7
Frame 48Z
Frequency 60 Hz
HP 0.5 HP
HP2 1/2 HP
Insulation Class B
kW 0.37kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Round - Extended Studs
Number of Poles 4
Number of Speeds 1
Overload Protection Automatic
Phase 1
Rated Current 2.9-2.6
Rated Voltage 208-230
Rotation Selective Counterclockwise
RPM 1625
Service Factor 1
Shaft Diameter 0.5"
Speed 1625
Starting Method
Description
Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
