Leeson

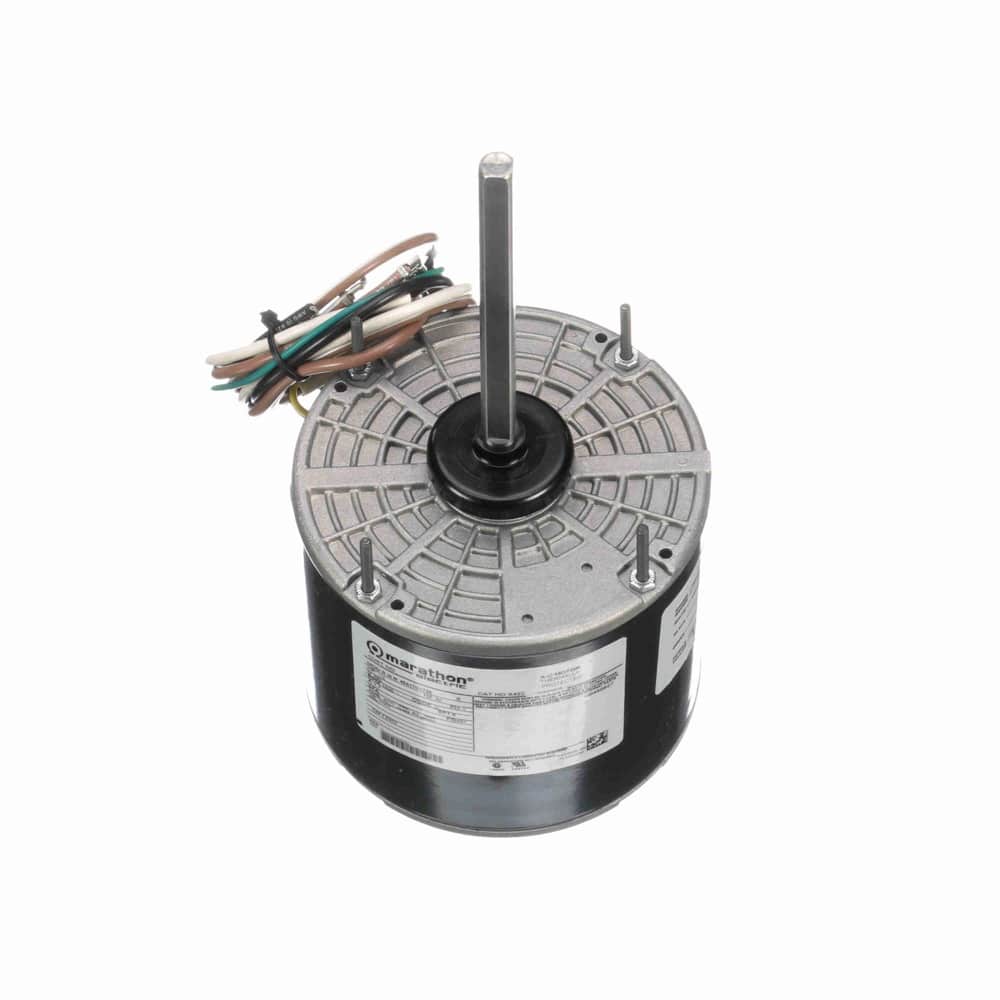

1/2HP 1PH 5.6″ 4P OAO 1625 PSC 460V AOL CF
Mfr # X422 | Wright’s # LSN X422
1/2HP Condenser Fan Motor, 1 Phase, 48Y Frame, 1625 RPM, 1 Speed, Permanent Split Capacitor, 460V, OAO Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
X422
Wright's #
LSN X422
Country of Origin
MEX
Specifications
C Dim
11.94"
Electrical Type
Permanent Split Capacitor
Enclosure
OAO
Full Load Efficiency
64
Frame
48Y
Frequency
60 Hz
HP
0.5 HP
HP2
1/2 HP
Insulation Class
B
kW
0.37kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Round - Extended Studs
Number of Poles
4
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
1.7
Rated Voltage
460
Rotation
Selective Counterclockwise
RPM
1625
Service Factor
1
Shaft Diameter
0.5"
Speed
1625
Starting Method
Description
Automatic reset thermal protector prevents overheating.
Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
Vertical/horizontal mounting for proper placement of the fan within airflow.
