Leeson

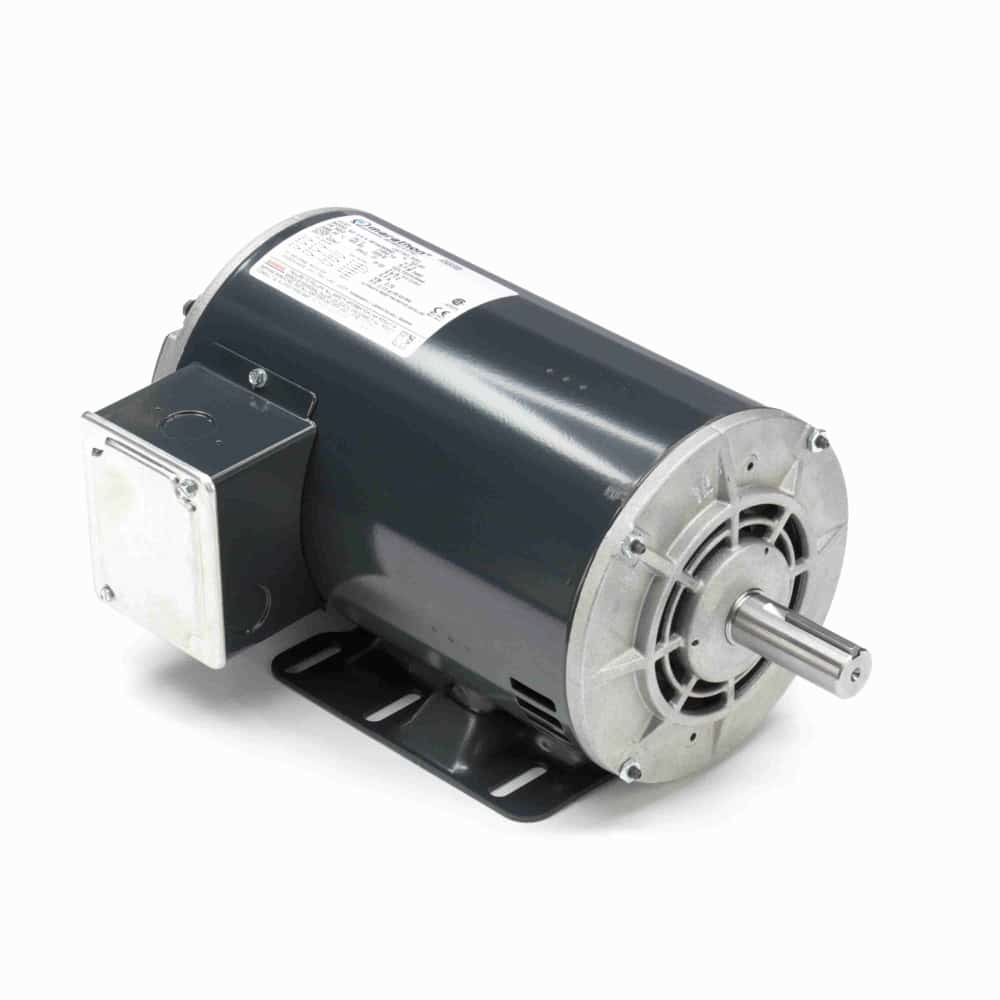

5HP 3PH 6.5″ 2P DP 3450 208-230/460V WB 56HZ AOL
Mfr # X251 | Wright’s # LSN X251
5HP Definite Purpose Motor, 3 Phase, 56HZ (56H, 143T, 145T Combination Base) Frame, 3450 RPM, 1 Speed, Squirrel Cage Induction Run, 208-230/460V, DP Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
X251
Wright's #
LSN X251
Country of Origin
MEX
Specifications
C Dim
13.49"
Electrical Type
Squirrel Cage Induction Run
Enclosure
DP
Full Load Efficiency
84
Frame
56HZ
Frequency
60 Hz
HP
5 HP
HP2
5 HP
Insulation Class
B
kW
3.7kW
Material
Rolled Steel
Max Ambient
40°C
Mounting Type
Rigid Base
Number of Poles
2
Number of Speeds
1
Overload Protection
Automatic
Phase
3
Rated Current
13.5-12.4/6.2
Rated Voltage
208-230/460
Rotation
Reversible
RPM
3450
Service Factor
1
Shaft Diameter
0.625"
Speed
3450
Starting Method
Description
Single speed model
Ball bearings
Heavy gauge steel frame and base
56H, 143T, and 145T combination base with 12 mounting holes
Rigid base
56HZ with 7/8″ shaft diameter, 3-1/2″ shaft height, and slotted 56 frame base
