Leeson

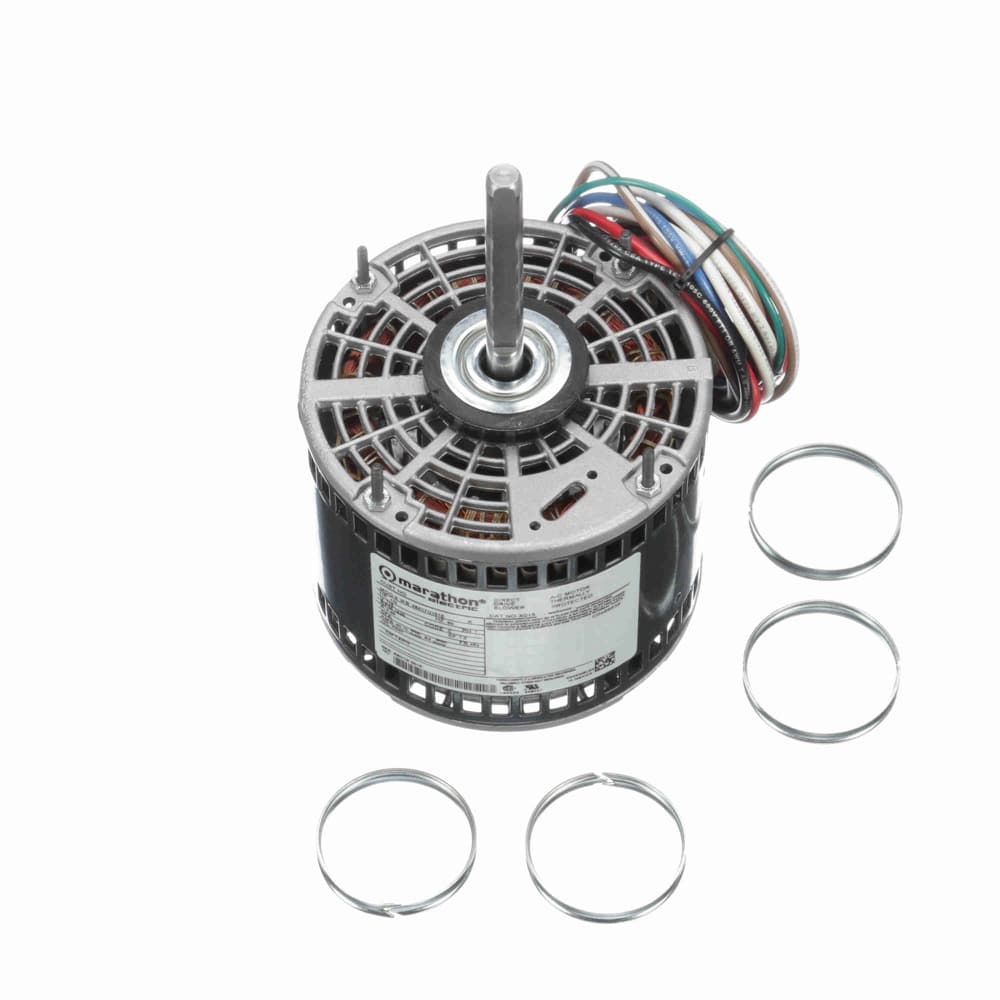

0.33HP 1PH 48Z 4P OAO 3spd 1625 PSC 115V AOL
Mfr # X015 | Wright’s # LSN X015
1/3HP Fan & Blower Motor, 1 Phase, 48Z Frame, 1625 RPM, 3 Speed, Permanent Split Capacitor, 115V, OAO Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand Leeson
Mfr # X015
Wright's # LSN X015
Country of Origin MEX
Specifications
C Dim 9.75"
Electrical Type Permanent Split Capacitor
Enclosure OAO
Full Load Efficiency 55
Frame 48Z
Frequency 60 Hz
HP 0.33 HP
HP2 1/3 HP
Insulation Class B
kW 0.25kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Resilient Ring - Extended Studs
Number of Poles 4
Number of Speeds 3
Overload Protection Automatic
Phase 1
Rated Current 4.0
Rated Voltage 115
Rotation Selective Counterclockwise
RPM 1625
Service Factor 1
Shaft Diameter 0.5"
Speed 1625
Starting Method
Description
Automatic reset thermal(as noted) protector prevents overheating.
Shielded ball bearings extend the service life of the motor.
Class B insulation protects motor for a maximum temperature rating.
Suitable for indoor or outdoor applications(as noted).
