Leeson
1HP 1PH 48Z OE 1075 PSC 200-230/460V AOL CF
Mfr # P195 | Wright’s # LSN P195

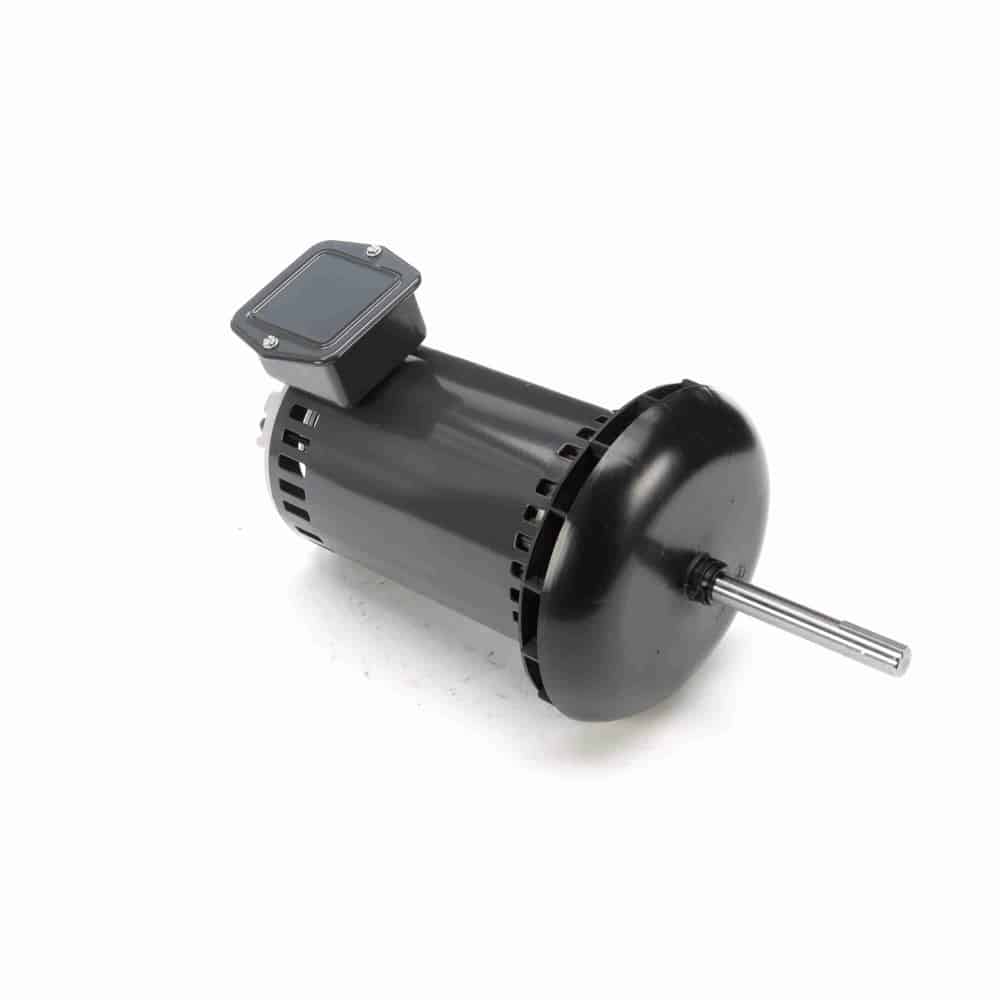

1HP Condenser Fan Motor, 1 Phase, 48Z Frame, 1075 RPM, 1 Speed, Permanent Split Capacitor, 200-230/460V, OE Enclosure, Automatic Overload Protection
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
P195
Wright's #
LSN P195
Country of Origin
MEX
Specifications
C Dim
16.05"
Electrical Type
Permanent Split Capacitor
Enclosure
OE
Full Load Efficiency
67
Frame
48Z
Frequency
60 Hz
HP
1 HP
HP2
1 HP
Insulation Class
B
kW
0.75kW
Material
Rolled Steel
Max Ambient
60°C
Mounting Type
Round
Number of Poles
6
Number of Speeds
1
Overload Protection
Automatic
Phase
1
Rated Current
5.8-5.6,2.8
Rated Voltage
200-230/460
Rotation
Clockwise/Counterclockwise
RPM
1075
Service Factor
1
Shaft Diameter
0.63"
Speed
1075
