Leeson

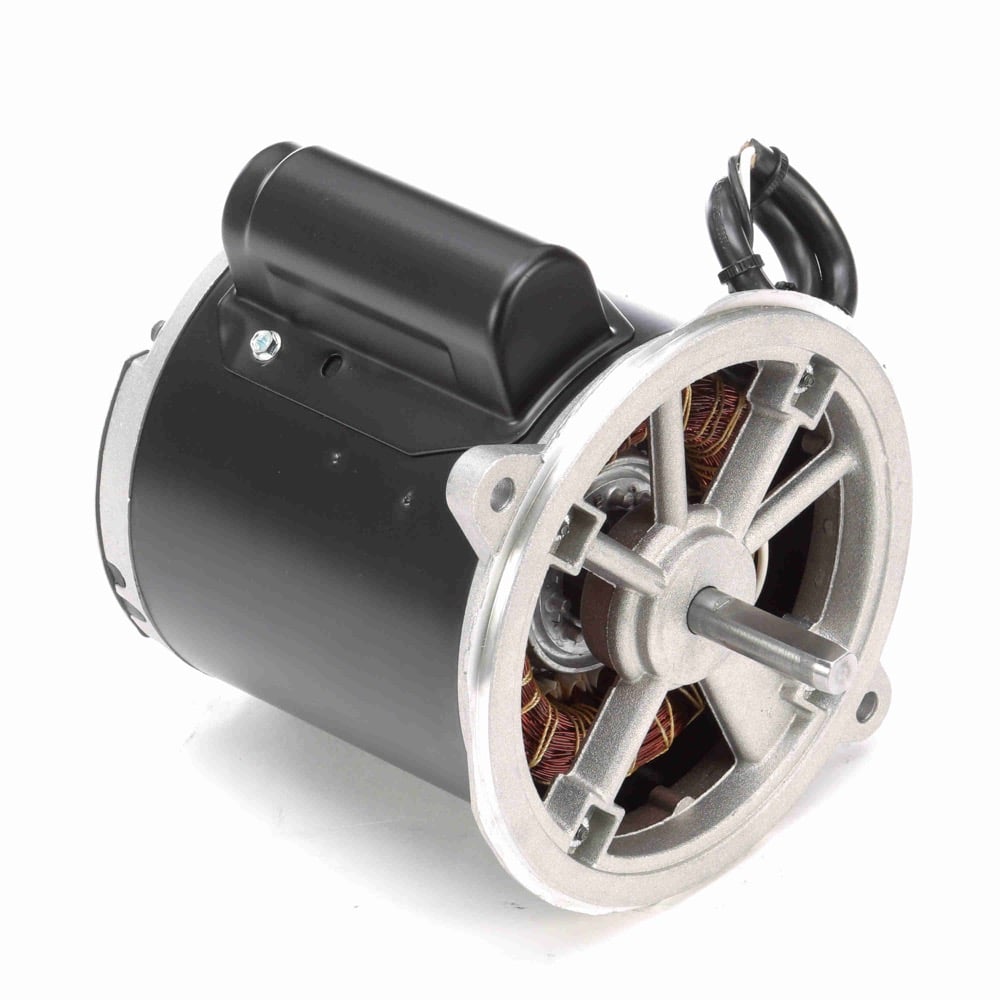

0.20HP 1PH 48N 2P SE 3450 115/230V MOL
Mfr # O012 | Wright’s # LSN O012
1/5HP Fan & Blower Motor, 1 Phase, 48N Frame, 3450 RPM, 1 Speed, Capacitor Start Induction Run, 115/230V, SE Enclosure, Manual Overload Protection
Contact Us For Pricing
Product Information
Brand Leeson
Mfr # O012
Wright's # LSN O012
Country of Origin MEX
Specifications
C Dim 8.35"
Electrical Type Capacitor Start Induction Run
Enclosure SE
Full Load Efficiency 61
Frame 48N
Frequency 60 Hz
HP 0.2 HP
HP2 1/5 HP
Insulation Class B
kW 0.15kW
Material Rolled Steel
Max Ambient 40°C
Mounting Type Round
Number of Poles 2
Number of Speeds 1
Overload Protection Manual
Phase 1
Rated Current 3.0/1.5
Rated Voltage 115/230
Rotation Selective Clockwise
RPM 3450
Service Factor 1
Shaft Diameter 0.5"
Speed 3450
Starting Method
Description
UL recognized component listing and CSA certification ensures the product is safe for use.
Double shielded ball bearings provide longer service life.
Continuous or continuous air over duty design allows consistent operation at the rated power(as noted).
Various mounting configurations (as noted).
