Leeson
0.38HP 3PH 38 TEFC 172 190V Gear
Mfr # M1145130.00 | Wright’s # LSN M1145130.00

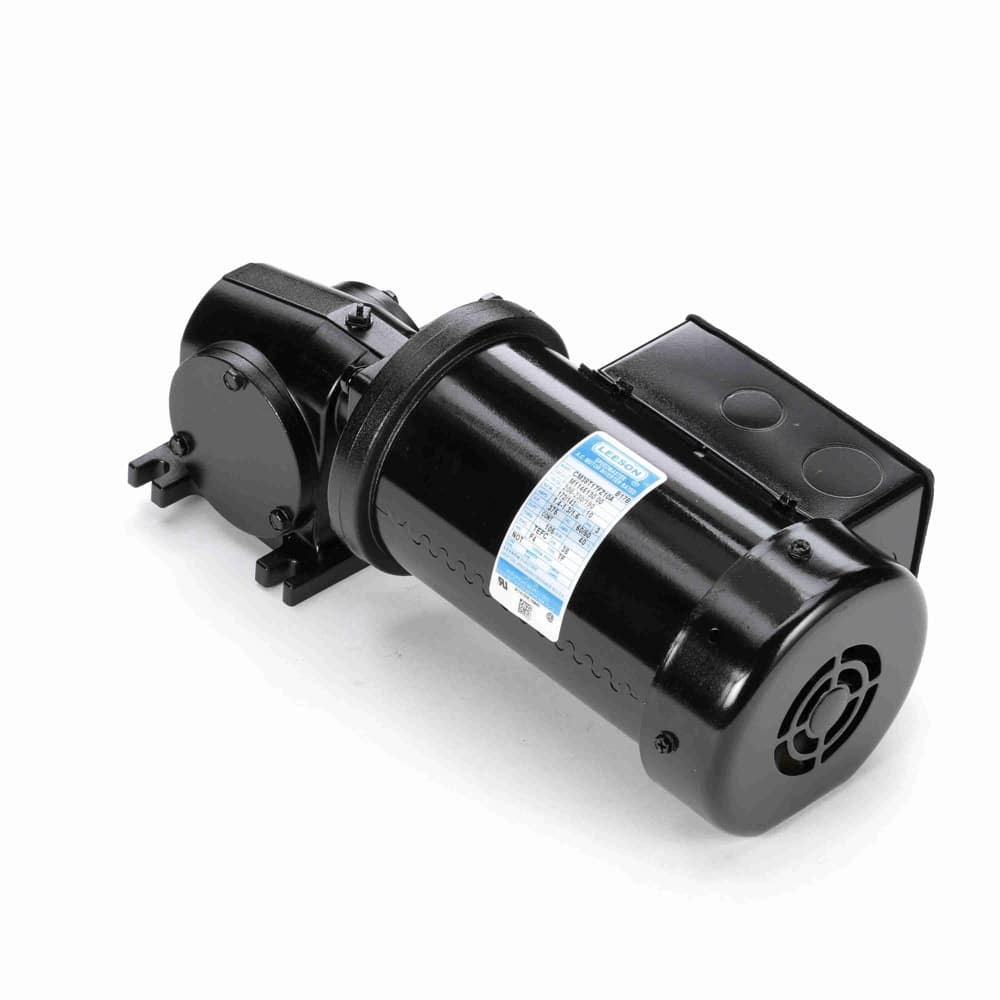

3/8HP Gear Motor, 3 Phase, 38 Frame, 172 RPM, Speed, Three Phase, 190V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand
Leeson
Mfr #
M1145130.00
Wright's #
LSN M1145130.00
Country of Origin
USA
Specifications
C Dim
12.31"
Electrical Type
Three Phase
Enclosure
TEFC
Frame
38
Frequency
60/50 Hz
HP
0.38 HP
HP2
3/8 HP
Insulation Class
F
kW
0.28kW
Max Ambient
40°C
Mounting Type
Special
Overload Protection
No Protection
Phase
3
Rated Current
1.4-1.3
Rated Voltage
190
Rotation
Reversible
RPM
172
Service Factor
1
Shaft Diameter
0.625"
Speed
172
Description
Designed with the exclusive Inverter Rated Insulation System (IRIS)
Provides superior protection against voltage spikes induced by variable frequency drives
Double shielded motor ball bearings
Steel conduit box provided as Standard
Finished in high gloss hardened black enamel paint
