Leeson

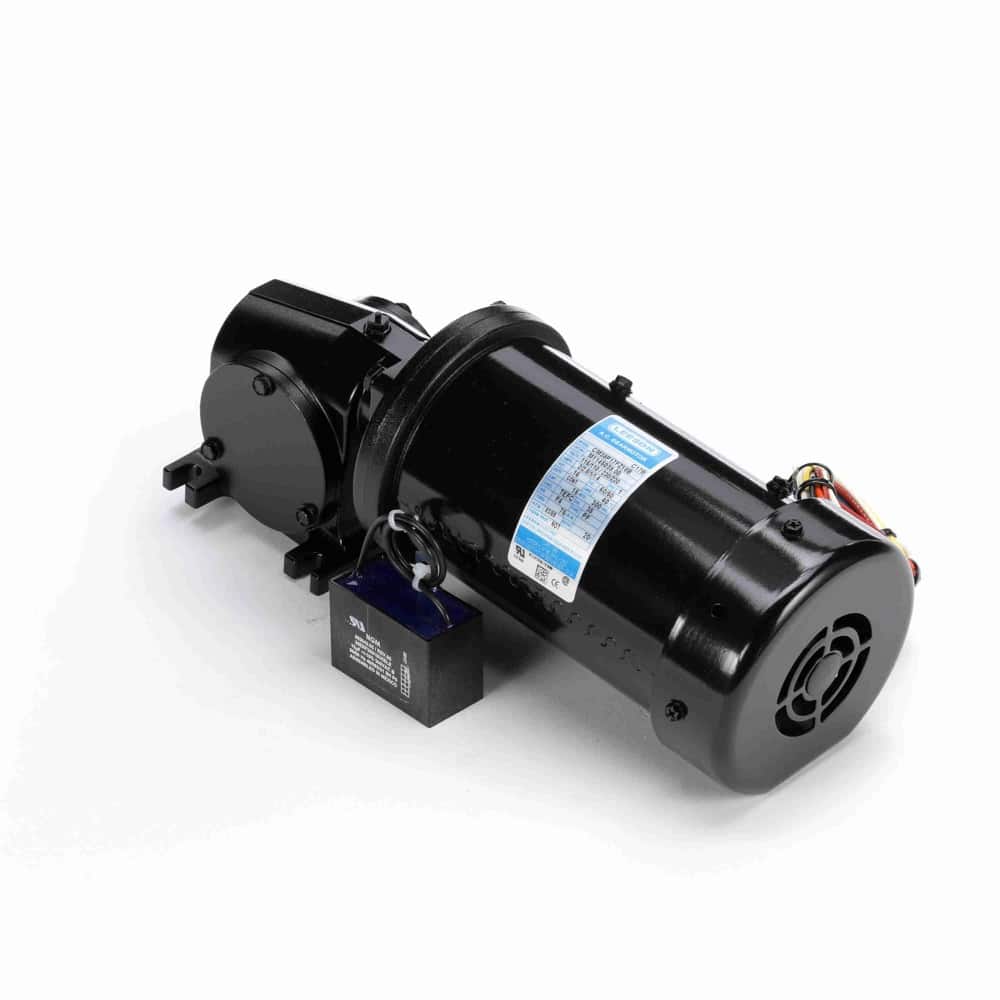

0.16HP 1PH 38 TEFC 83 110V Gear
Mfr # M1145039.00 | Wright’s # LSN M1145039.00
1/6HP Gear Motor, 1 Phase, 38 Frame, 83 RPM, Speed, Three Phase, 110V, TEFC Enclosure
Contact Us For Pricing
Product Information
Brand Leeson
Mfr # M1145039.00
Wright's # LSN M1145039.00
Country of Origin USA
Specifications
C Dim 12.31"
Electrical Type Three Phase
Enclosure TEFC
Frame 38
Frequency 60/50 Hz
HP 0.16 HP
HP2 1/6 HP
Insulation Class F
kW 0.12kW
Max Ambient 40°C
Mounting Type Special
Overload Protection No Protection
Phase 1
Rated Current 2.0/1.0
Rated Voltage 110
Rotation Reversible
RPM 83
Service Factor 1
Shaft Diameter 0.625"
Speed 83
Description
Permanent split capacitor design rated for 115/230VAC 60/50 HZ input
Worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation
Precision machined aluminum gear housing
Lubrication is permanent with an oil bath
Gearbox has all ball bearings
Output shaft is field interchangeable from left hand to right hand style by reassembly
Double output shaft available as a factory option
Optional conduit box available
